TM10-3950-672-24-2

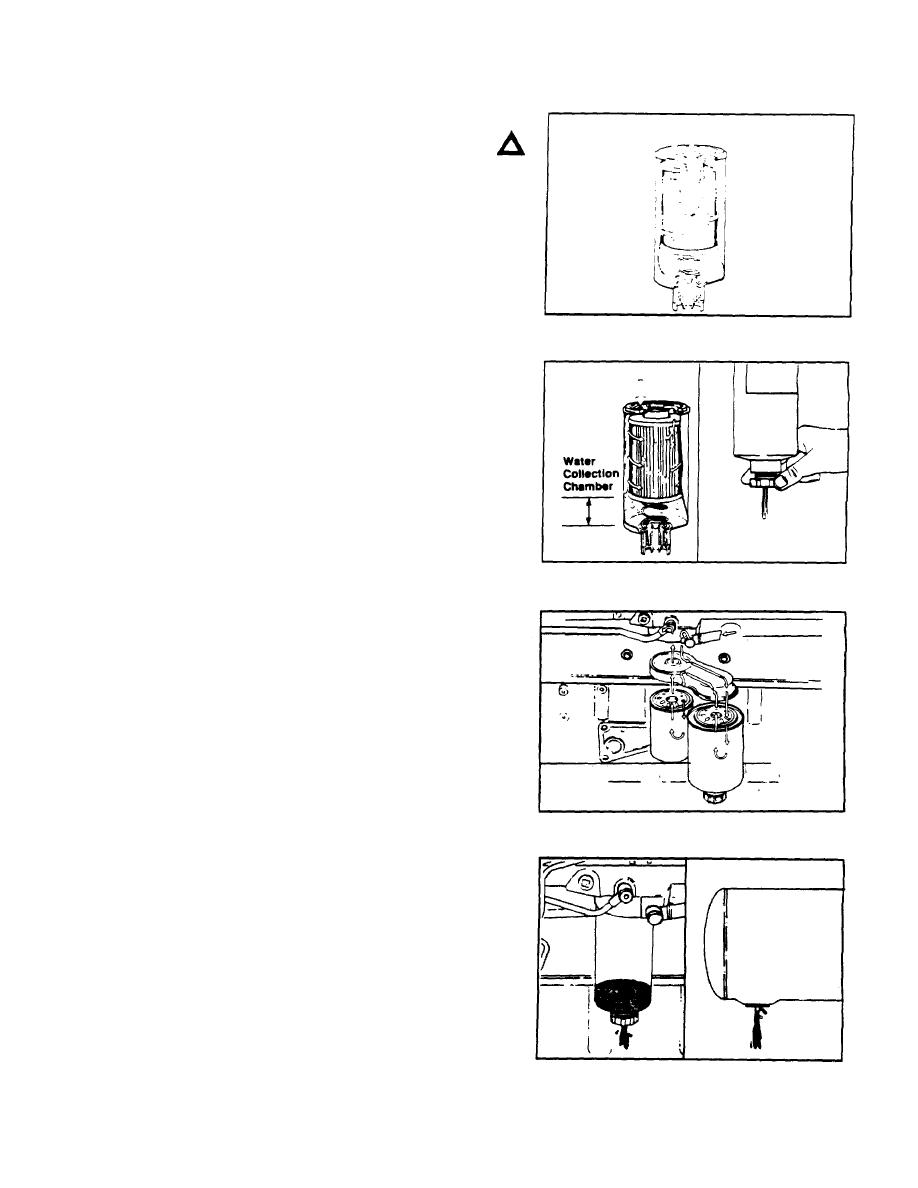

Fuel Water Separator/Filter Unit
Caution: Be sure to use the correct
element.
Filtration and separation of water from the fuel is
important for trouble-free operation and long life of the
fuel system. Some of the clearances between the pump
parts are very close. For this reason the parts can
The element has a valve which can be opened regularly
to drain the collected water.
A dual water separator/filter adaptor option provides
additional filtering capacity.
It is used in severe
environments, where there is great exposure of the fuel
The fuel flows through the adapter to a larger
combination fuel water separator filter, and back to the
fuel filter for final filtering.
Regular maintenance, including draining moisture from
the fuel water separator/filter and supply tanks, is
essential to keep water out of the fuel.
5-71
