TM10-3950-672-24-2

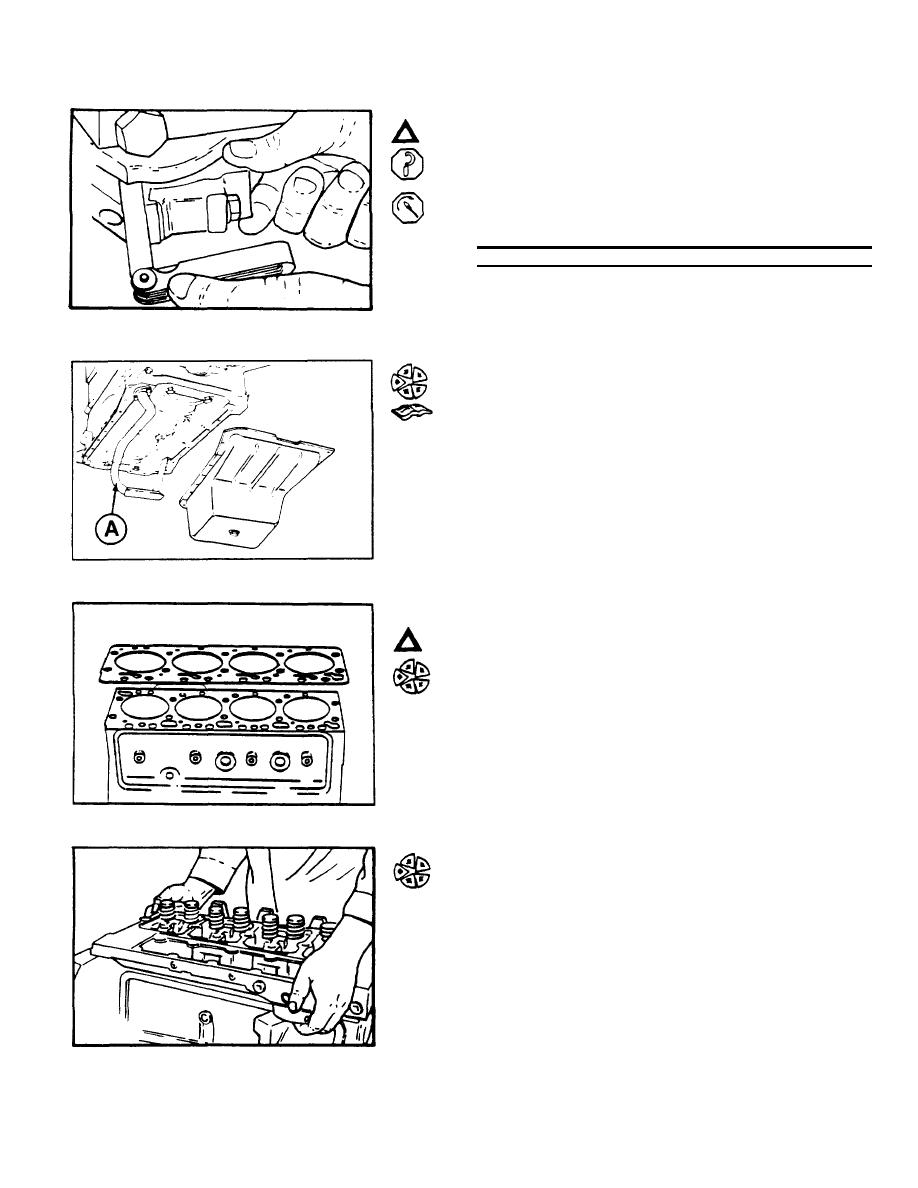

Caution: Do not measure the clearance between
the cap and crankshaft.
Measure the side clearance between the connecting rod
and crankshaft.
Side Clearance Limits
Min
Max
0.10mm
0.30mm
[0.004 in]
[0.012 in]
'
Install the suction tube and oil pan.
Cylinder Head and Gasket Installation
Caution: Make sure the gasket is correctly aligned
with the holes in the cylinder block.
The cylinder block and head must be clean and dry.
Position the gasket onto the dowels.
Carefully, put the cylinder head onto the gasket and
cylinder block.
Note: Make sure the cylinder head is installed onto the
dowels in the cylinder block.
5-242
