TM 5-3810-300-24 & P2
REF
NO.
NO.
PART NUMBER
DESCRIPTION
REQ 'D

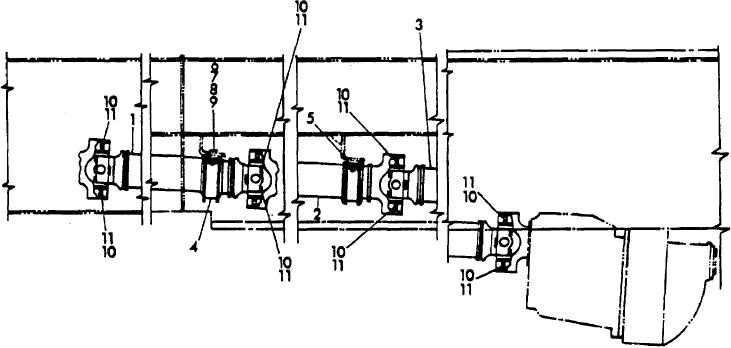

DRIVE LINE INSTALLATION
*1
7364000703
Shaft, Horizontal ---------------------------------------------------- 1
*2
7364000702
Shaft, Horizontal ---------------------------------------------------- 1
*3
7364000709
Shaft, Propeller ----------------------------------------------------- 1
4
7069000129
Bearing, Drive Line Center --------------------------------------- 2
5
6705006026
Plate, Spacer -------------------------------------------------------- A/R
6
MS90725115
Bolt, Hex Head 1/2"13 N.C. x 2" Length -
Grade 5 --------------------------------------------------------------- 4
7
MS2718318
Flatwasher .095 Thick x 17/32" I.D. x 1
1/16" O. D. Steel --------------------------------------------------- 4
8
MS5196714
Nut, Hex 1/2"13 N.C. Grade A---------------------------------- 4
9
MS3569133
Nut, Jam 1/2"13 N.C. Grade A --------------------------------- 4
10
MS3534048
Lockwasher 1/2" Heavy Spring Steel ------------------------ 16
11
7108182050
Screw, Hex Head Cap--------------------------------------------- 16
A/R As Required
"Part numbers denoted by an asterisk identifies chose descriptive items that comprise the
anti tampering portion of 40 CFR Part 205 EPA noise regulation. Prior to replacement,
refer to your service manual for a complete list of these items that meet the criteria and is
consistent with the "list of tampering acts" published in your operators handbook."
If further clarification or questions arise, please advise.
2-13Q- 00113
B-3
