TM10-3950-672-24-2
Cooling System Replacement Procedures

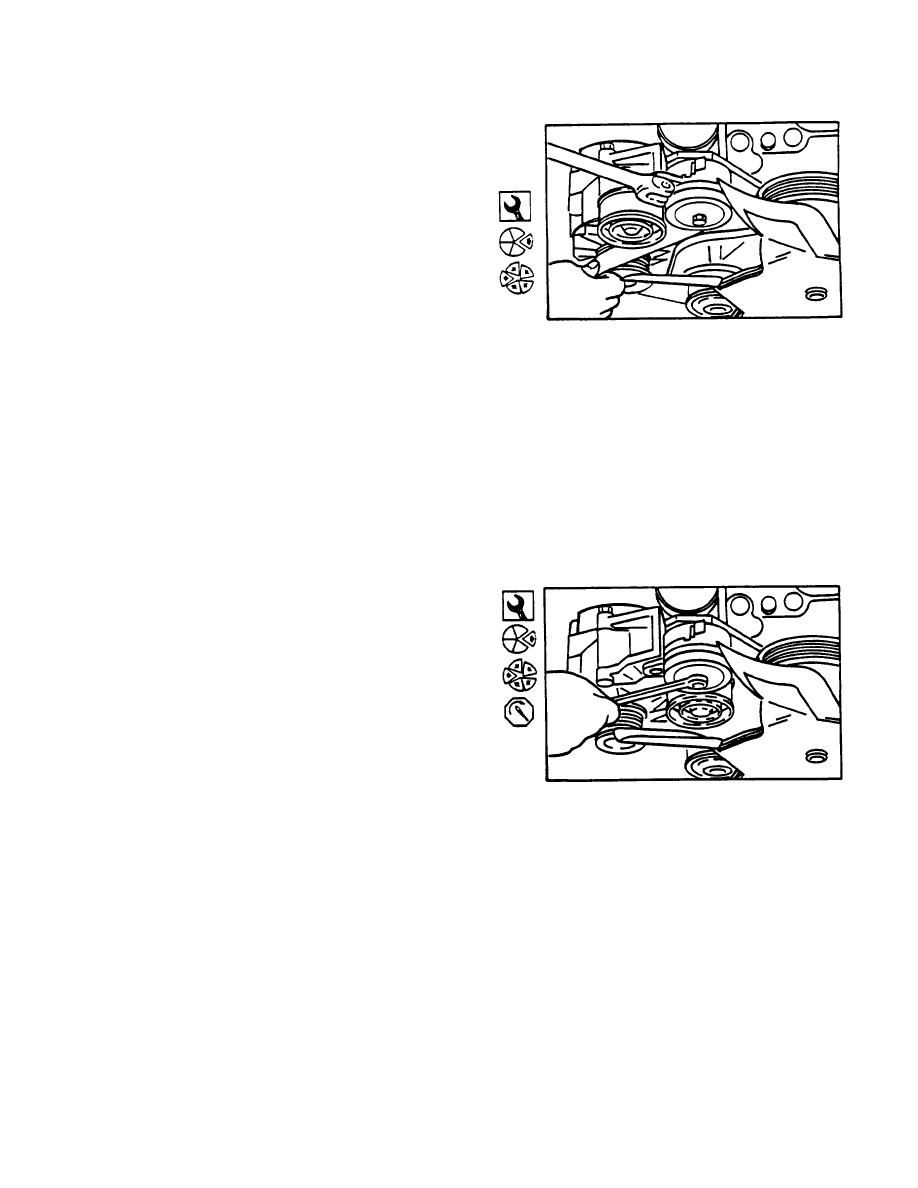

Drive Belt - Replacement
1/2 inch Square Drive
Lift the tensioner to remove and install the drive belt.
Belt Tensioner - Replacement
Preparatory Step:
Remove the drive belt
15mm
Remove the capscrew and replace the tensioner.
Torque Value: 43 N 132 ft-lbs]
m
Fan Pulley Replacement
Preparatory Step:
Remove the drive belt.
5-59
