TM1 0-3950-672-24-2

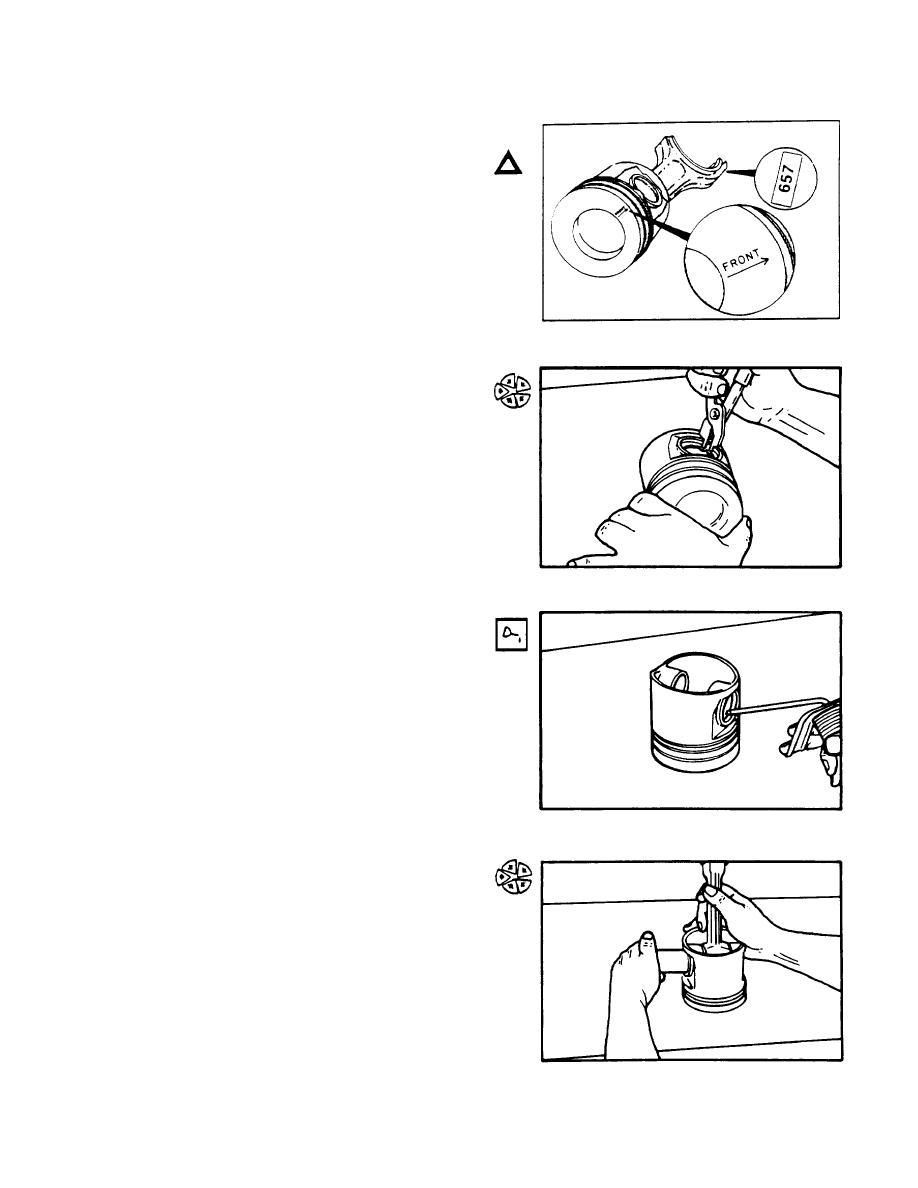

Piston to Connecting Rod Installation
Caution: Be sure 'Front' marking on piston and the
numbers on the rod and cap are oriented as
illustrated.
Install the retaining ring into the pin groove on the "
Front" side of the piston.
Lubricate the pin and pin bores with engine oil.
Install the pin.
however, the piston does need to be at room
temperature or above.
5-235
