Note: The dimensions of the thrust bearing and
crankshaft journal determine end play.
Measure the crankshaft end play.
Dim. (A) End Play Limits
Min
Max
0.13mm
0.25mm
[0.005 in)
[0.010 in]

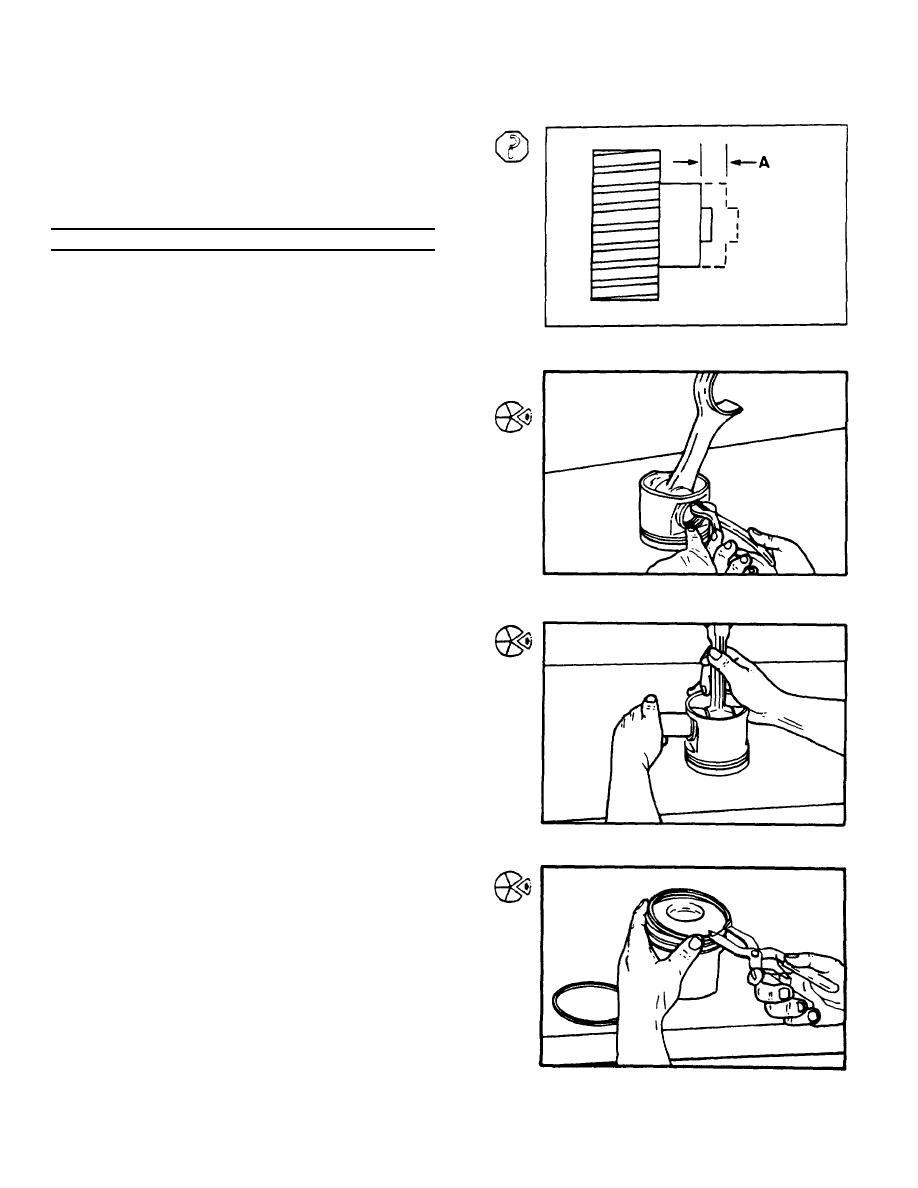

Piston and Rod - Disassembly
Remove the retaining rings.
Remove the piston pin.
Note: Heating the piston is
not required.
Remove the piston rings.
