TM 10-3950-672-24-2
Caution: The gear will be permanently distorted if
over-heated. The oven temperature should never
exceed 177C [350F].

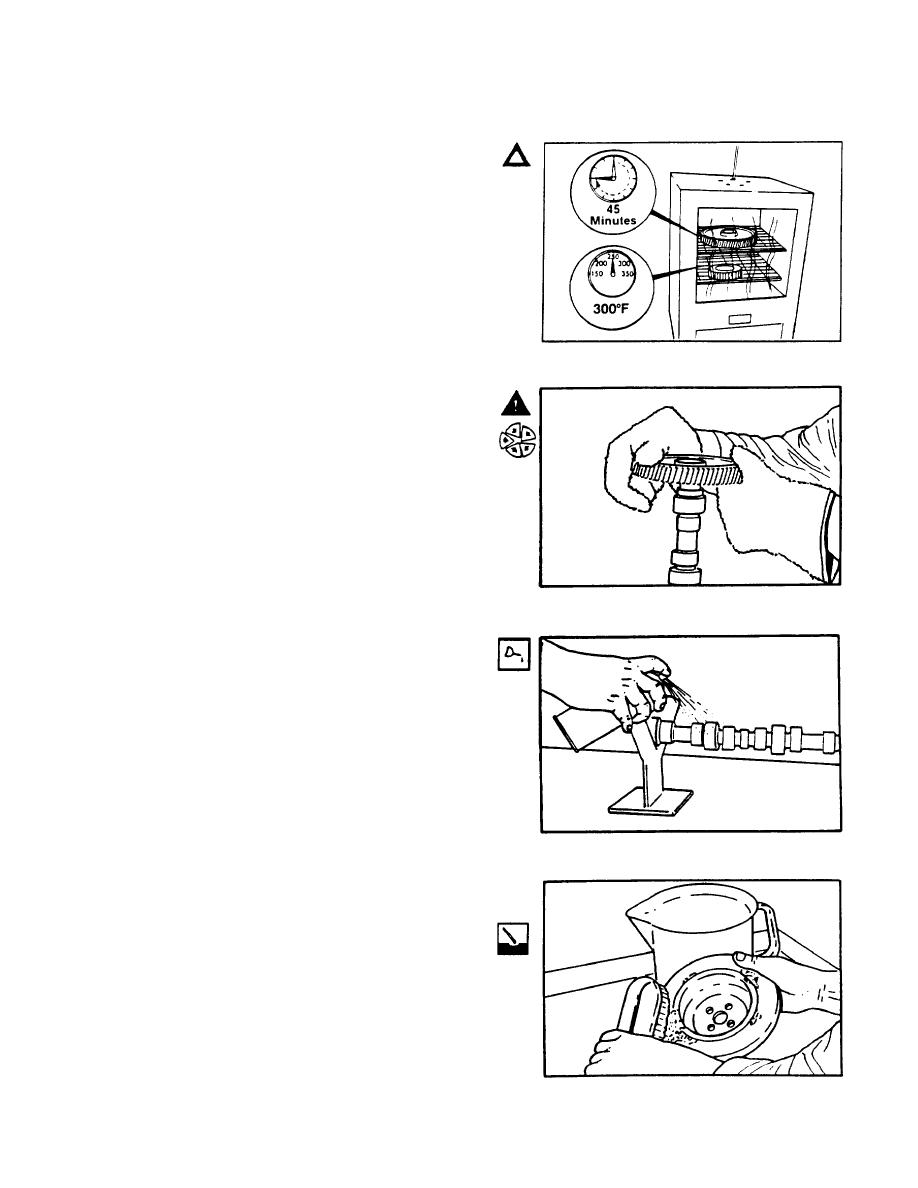

Heat the camshaft gear in a preheated oven at 149 C
[300F] for 45 minutes.
Wear protective gloves to prevent personal injury.
Install the gear with the timing marks away from the
camshaft.
Be sure the gear is seated against the camshaft
shoulder.
If the camshaft is not to be used immediately, lubricate
the lobes and journals to prevent rusting.
Vibration Damper - Cleaning and Inspection
Clean the damper with hot soapy water and a brush.
After rinsing with clean water, use compressed air to
dry.
5-303
