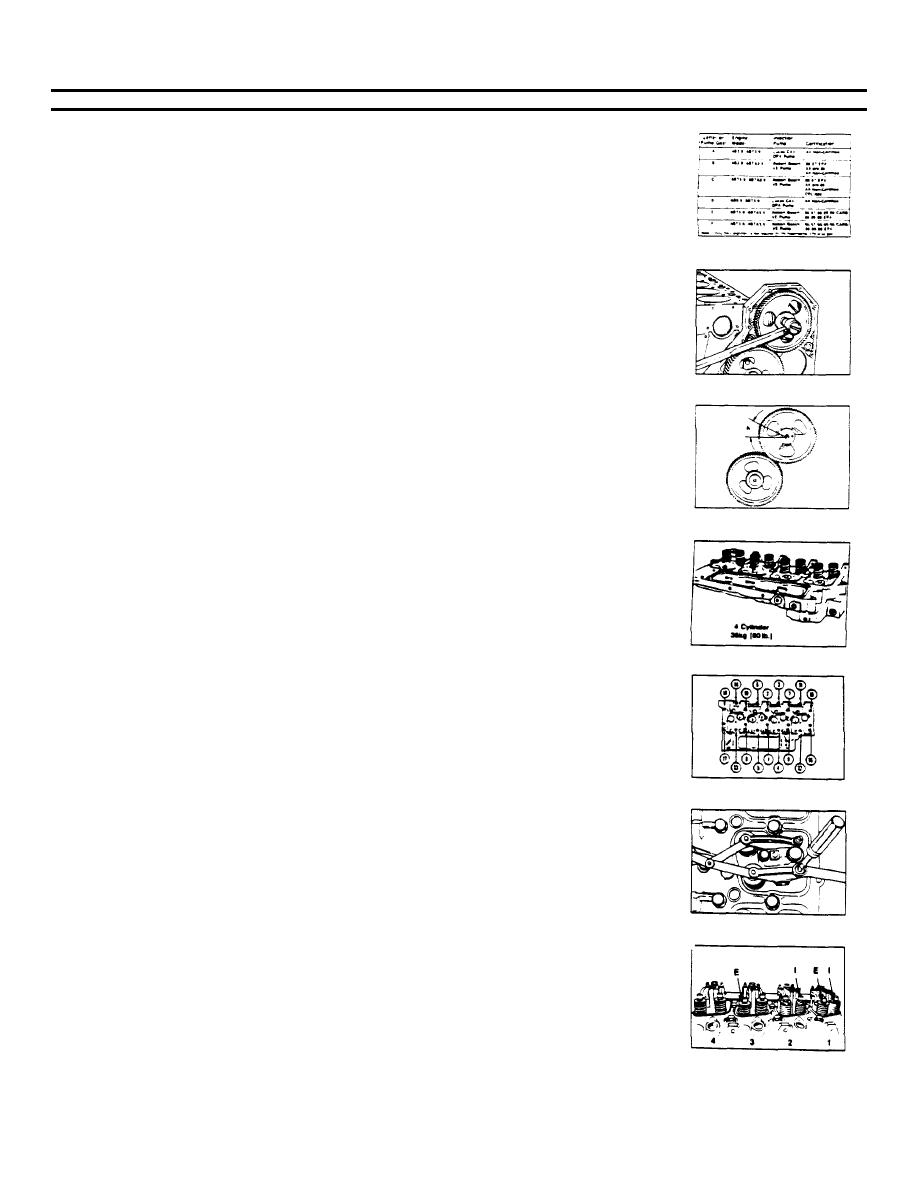

TM 10-3950-672-24-2
Part or Assembly
Ref. Point
mm
in
This table must be used to make sure of proper fuel injection pump-to-engine timing. The critical parts list (CPL)
number from the engine data plate and the Control Parts List Manual (Bulletin No3379133-20) must be used to
determine whether or not the engine is certified, and if so, what year and regulating agency (EPA ro CARB)
Given this information, use the table to determine which letter on the fuel injection pump drive gear is aligned with
the camshaft gear.
Injection pump drive gear torque
Bosch & CAV 65 N
m
[48 ft-lb]
values
Injection pump drive gear backlash
A
0.08
MIN
[0.003]
limits
0.045
MAX
[0.018]
Cylinder Head Weight
4 Cylinder
36 Kg
[80 lb]
Cylinder Head Torque value and
1
40 N
m
[29 ft-lb]
sequence
2
85 N
m
[62 ft-lb]
3
126 N
m
[93 ft-lb]
Valve stem to rocker lever clearances
Intake
0.25mm
[0.010]
0.51mm
[0.020]
Valve adjustment procedure
Perform step A of the valve set procedure with Cylinder Number 1 at TDC compression stroke (timing pin will engage).
Step A - Four Cylinder
5-352
