TM 5-3810-300-24 & P2
1.
Hydraulic Lines
9.
Hydraulic Lines
2.
Hydraulic Lines Attachment Bolts
10.
Mounting Bolts
3.
Hydraulic Pump Attachments Bolts
11.
Breather Plug
4.
Hydraulic Pump
12.
Mounting Bolts
5.
Mechanical Linkage
13.
Constant Speed Pump Drive
6.
Hydraulic Lines
14.
Filler Plug
7.
Hydraulic Lines
15.
Oil Change Plug
8.
Constant Speed Pump Drive Drain Plug
16.
Mounting Bracket

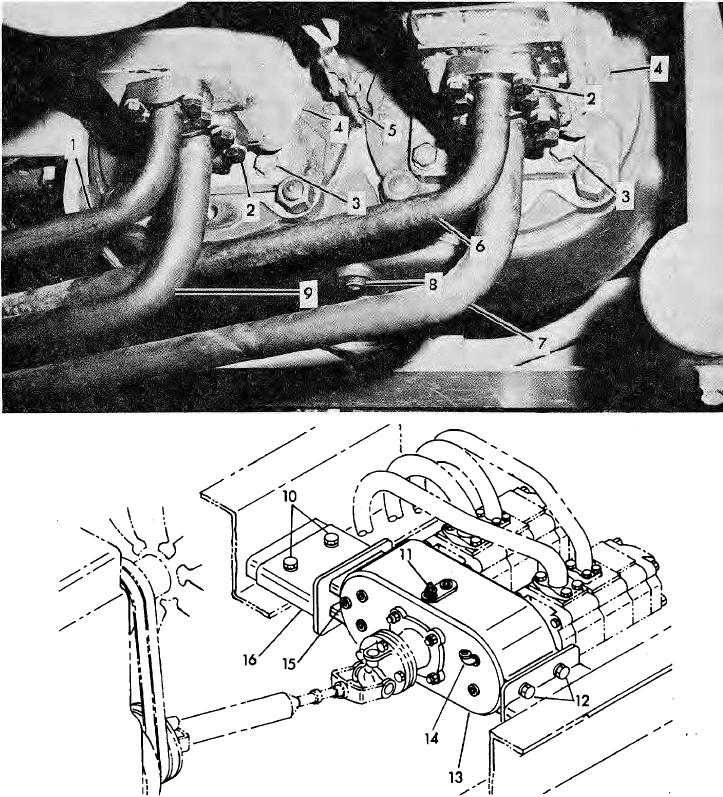

Illustration 4-26. Constant Speed Pump Drive Removal
4-89
