Illustration 4-34. Auxiliary Shift Cylinder.
Disassemble Auxiliary Shift Cylinder - Continued
Maintenance Manual For Crane, Truck Mounted Hydraulic 25 Ton (CCE)
Page Navigation
110
111
112
113
114
115
116
117
118
119
120
TM
5-3810-300-24
& P2

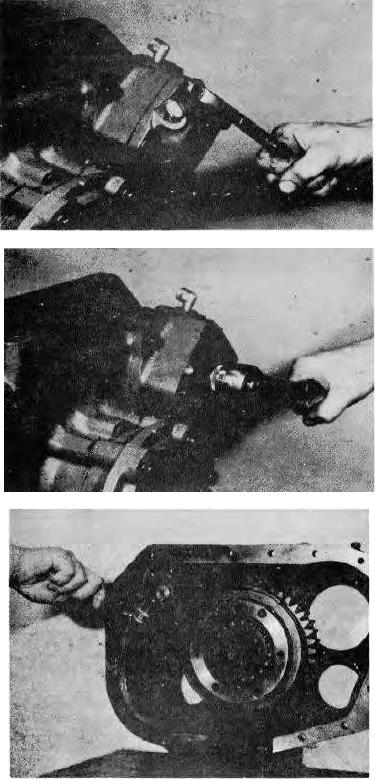

Turn
out
the
four
capscrews
and
remove
the
cover
from
the
shift
cylinder.
Remove
the
locknut
from
the
shifting
shaft
in
the
cylinder.
Cut
the
lockwire
and
turn
out
the
two
yoke
lockscrews.
