TM 5-3810-300-24 & P2

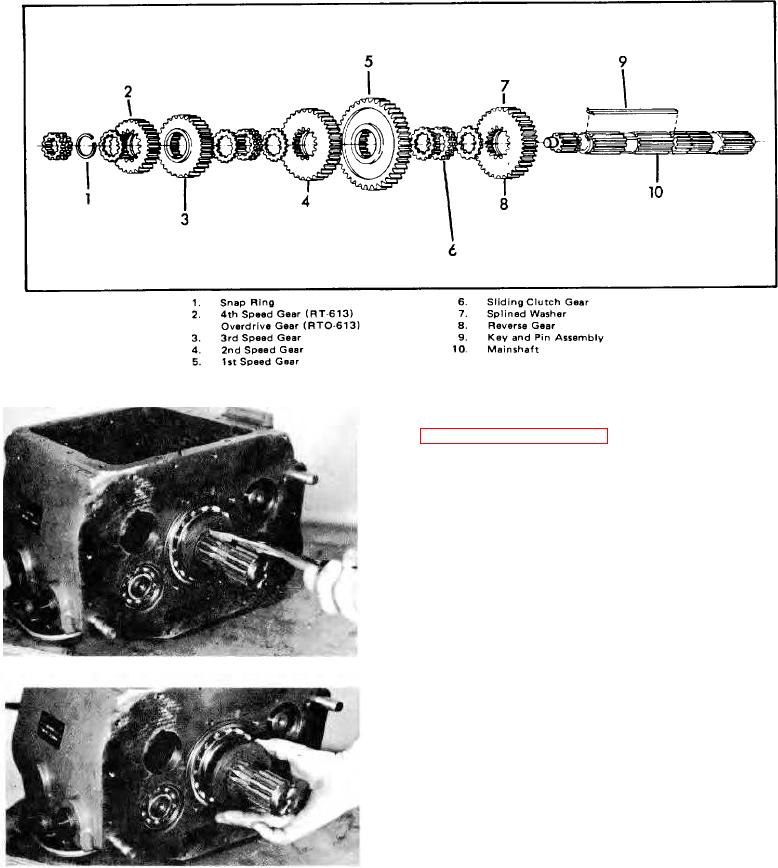

Illustration 4-41. Main Shaft.
14. Disassemble Main Shaft.
NOTE
SEE ILLUSTRATION 4-41 FOR EXPLODED VIEW OF
MAIN SHAFT.
Remove the two mainshaft rear bearing retainers, and
remove the snap ring from the groove in the rear of the
mainshaft. Use caution as this will free the spring-
loaded
centering ring.
NOTE:
It may be necessary to relieve pressure on the snap
ring by tapping on the front of the mainshaft.
Remove the splined retainer from the mainshaft.
4-154
