TM 5-3810-300-24 & P2
1.
Cotter Key
19.
Diff. Pinion Thrust Washer
37.
Diff. Carrier and Cap Assembly
2.
Drive Pinion Flange and Slinger Assembly
20.
Diff. Pinion
38.
Hardened Washer
3.
Capscrew
21.
Diff. Spider
39.
Diff. Bearing Cap Capscrew
4.
Gasket
22.
Diff Side Gear
40.
Diff. Bearing Adjusting Nut
5.
Drive Pinion Outer Bearing
23.
Drive Gear
41.
Thrust Block Adjusting Screw Jam Nut
6.
Drive Pinion Outer Bearing Cup
24.
Gear to Case Bolt
42.
Thrust Block Adjusting Screw
7.
Drive Pinion Inner Bearing
25.
Diff. Side Gear Thrust Washer
43.
Drive Pinion Inner Bearing Cup
8.
Drive Pinion
26.
Lockwire
44.
Drive Pinion Bearing Spacer
9.
Drive Pinion Pilot Bearing
27.
Cotter Key
45.
Shims
10.
Pilot Bearing Washer
28.
Thrust Block
46.
Drive Pinion Bearing Cage
11.
Pilot Bearing Snap Ring
29.
Dill. Case Flange Hall
47.
Pinion Cage Cover Oil Seal
12.
Oil Filler Plug
30.
Gear to Case Bolt Nut
48.
Pinion Cage Cover
13.
Diff. Bearing Adjusting Nut Lock
31.
Dill. Case Bolt (Long)
49.
Drive Pinion Nut
14.
Diff. Case Hall
32.
Diff. Bearing
15.
Diff. Bearing
33.
Lockwire
Some Models may employ
16.
Diff. Bearing Cup
34.
Diff. Bearing Cup
only the thrust screw which
17.
Lockwire
35.
Diff. Case Bolt
may replace the thrust
18.
Diff. Side Gear Thrust Washer
36.
Diff. Bearing Cap
screw and block assembly.

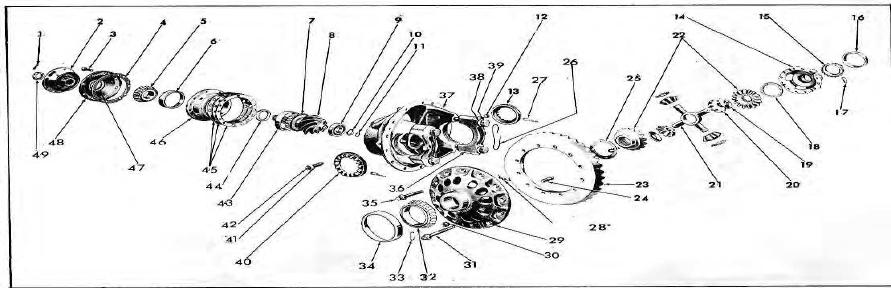

Illustration 4-46. Single-Reduction Drive Unit.
