TM 5-3810-300-24-&P-3
Cylinder Liner 1.6.3

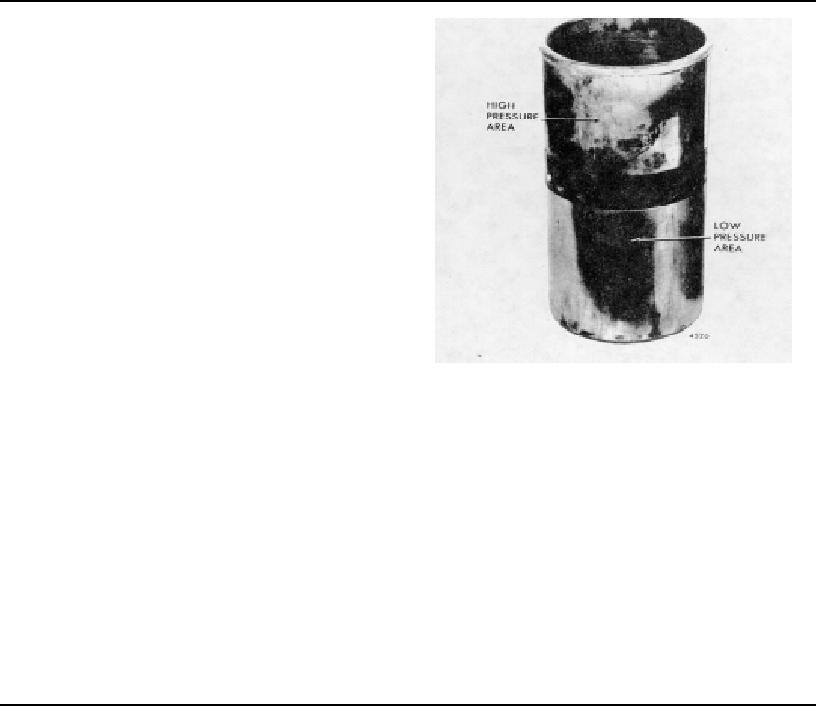

Fig. 6 - High and Low Pressure Contact
Areas on Cylinder Liner
Inspect Cylinder Liner
When the cylinder liner is removed from the cylinder
block, it must be thoroughly cleaned and then checked
for:
Cracks
Scoring
Poor contact on outer surface
Flange irregularities
Inside diameter
Out-of-round
Taper
Page 104
