TM10-3950-672-24-2
Note

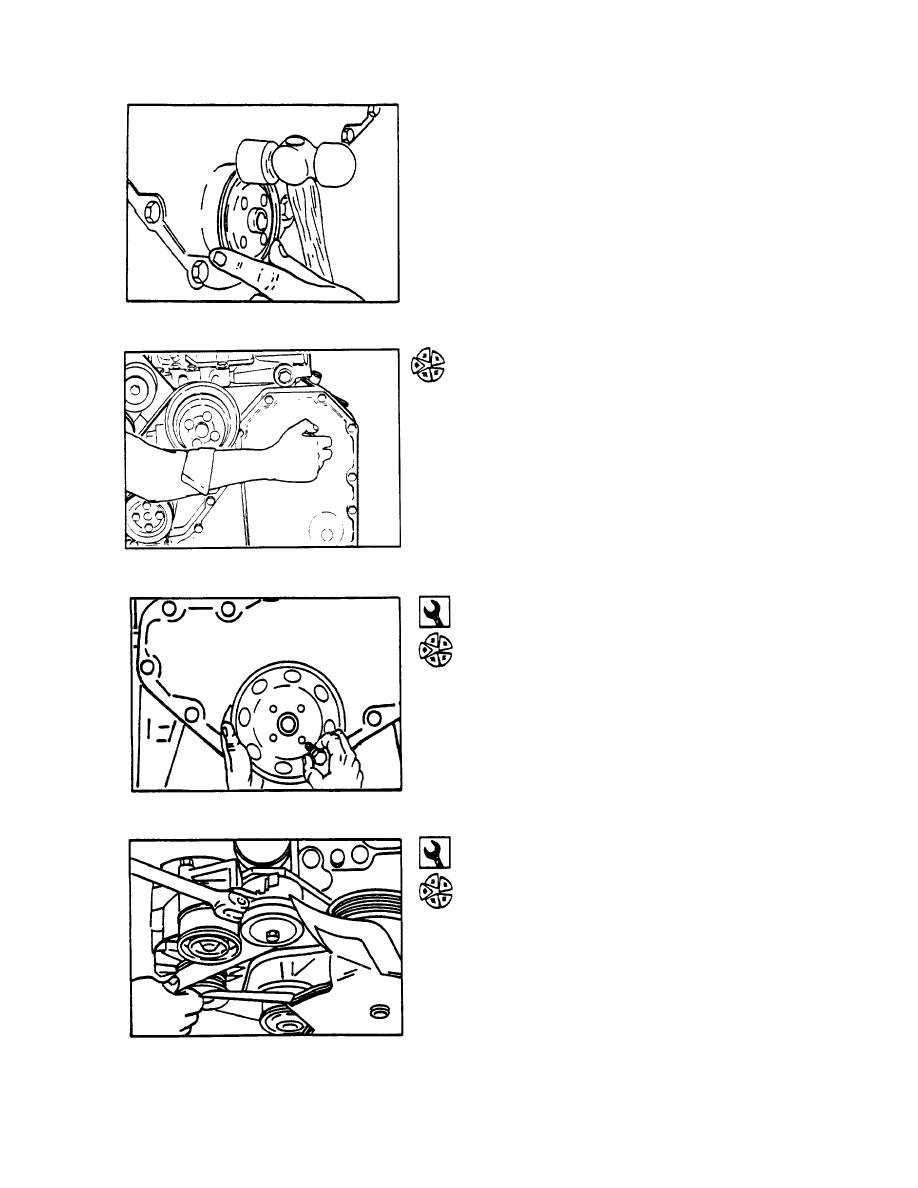

To prevent damage to the seal carrier, hit the
alignment/installation tool alternately at the 12, 3, 6
and 9 o'clock positions.
Use the alignment/installation tool and a plastic hammer
to install the seal to the correct depth.
Install the front cover access cap and seal.
15mm
Install the crankshaft pulley.
Do not tighten the
capscrews to the correct torque value at this time.
1/2 inch Square Drive
Raise the belt tensioner to install the belt.
5-140
