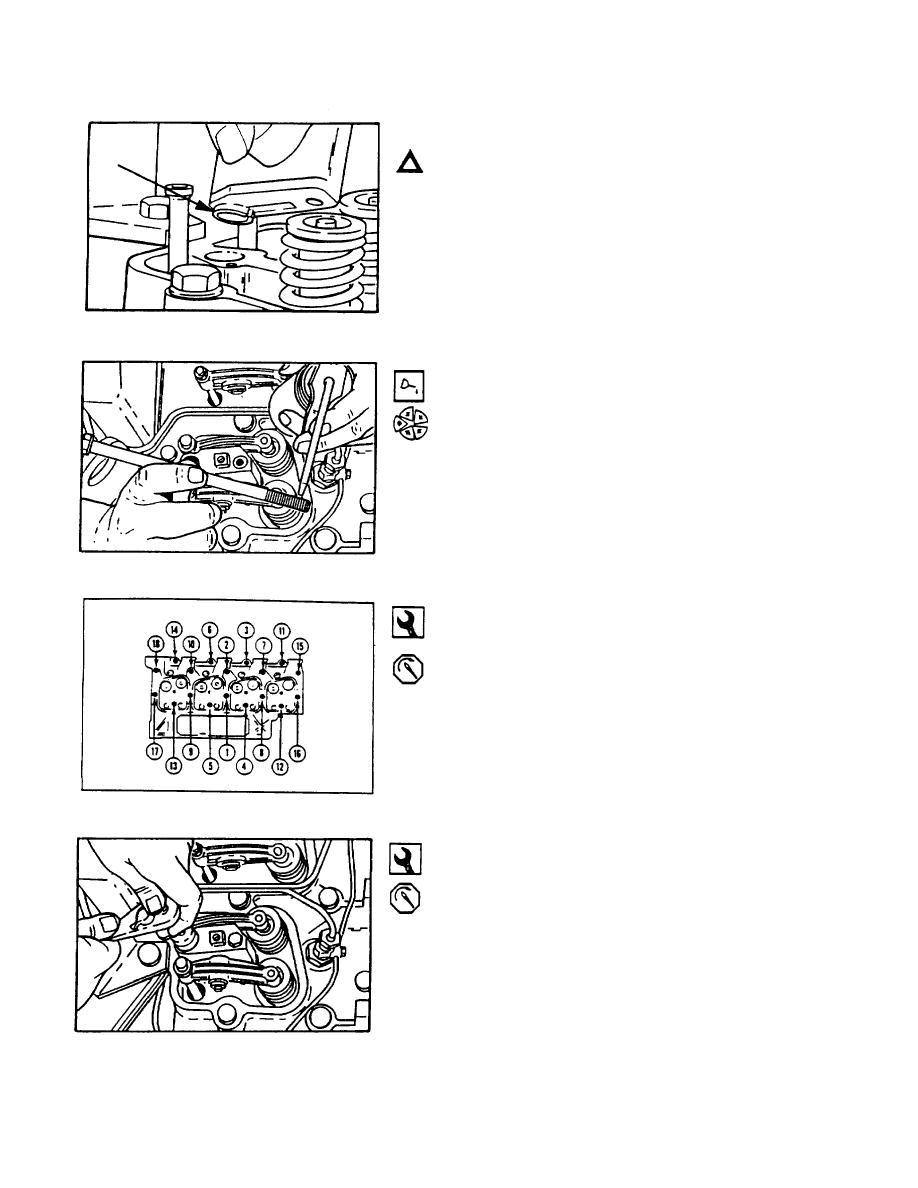

Rocker Lever Assembly Installation
Caution: Make sure the dowel rings in the pedestals
are installed into the dowel bores.
Use clean engine oil to lubricate the threads and under
the heads of the 8mm and 12mm capscrews.
Install the capscrews into the pedestals.
18mm
Use the sequence shown to tighten ALL of the 12mm
cylinder head capscrews.
Step 1 - 40 N [29 ft-lbs]
m
Step 2 - 85 N [62 ft-lbs]
m
Step 3 - 126 N [92 ft-lbs]
m
13mm
Tighten the 8mm pedestal capscrews.
Torque Value: 24 N
[18 ft-lbs]
m
