TM
10-3950-672-24-2

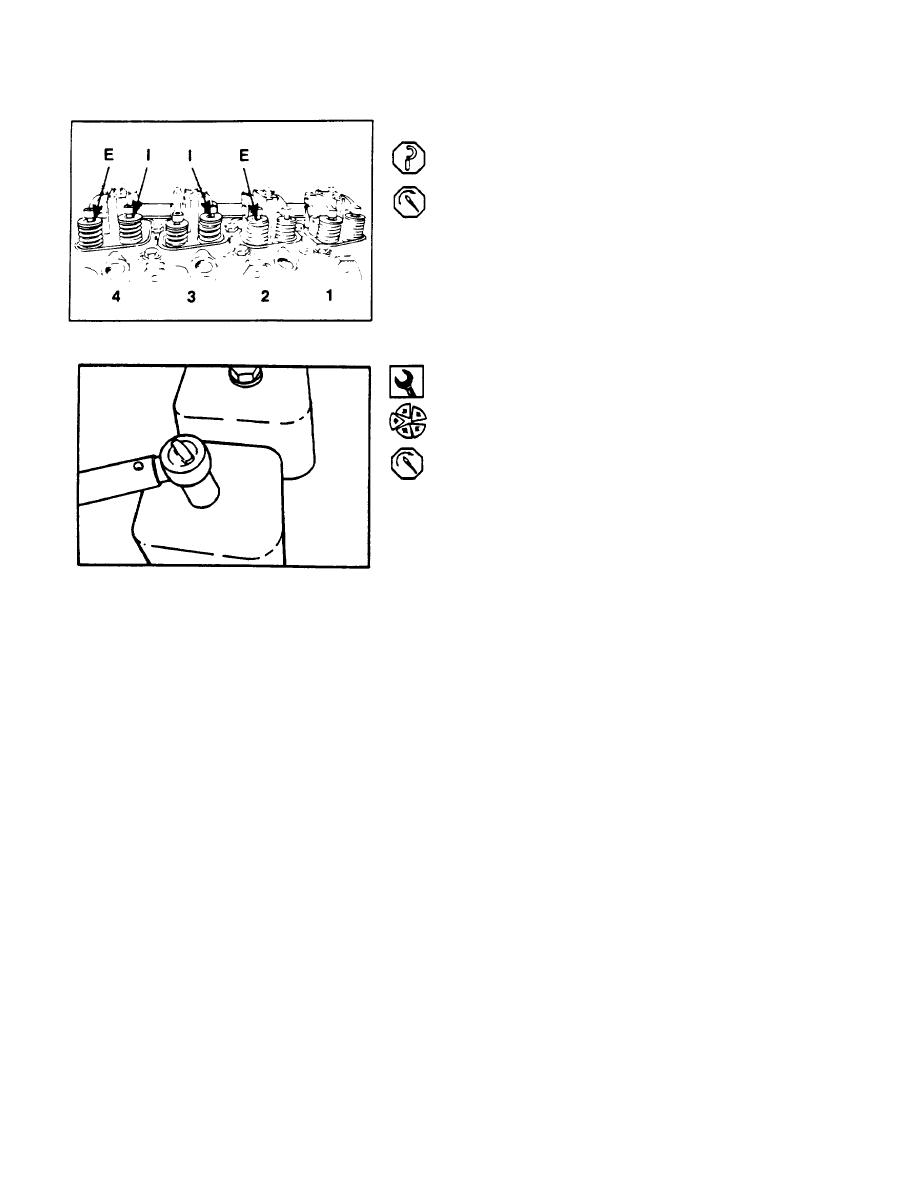

Step
B
Adjust
the
clearance
for
the
valves
shown
in
the
illustration.
Intake:
0.254mm
[0.010
inch]
Exhaust
:
0.508mm
[0.020
inch]
Torque
Value:
24 N
[18
ft-lbs]
m
15mm
Install
the
valve
covers.
Torque
Value:
24 N
[18
ft-lbs]
m
5-198
