TM 10-3950-672-24-2
No. 10 Sheet Metal Screw, Slide Hammer Dent Puller

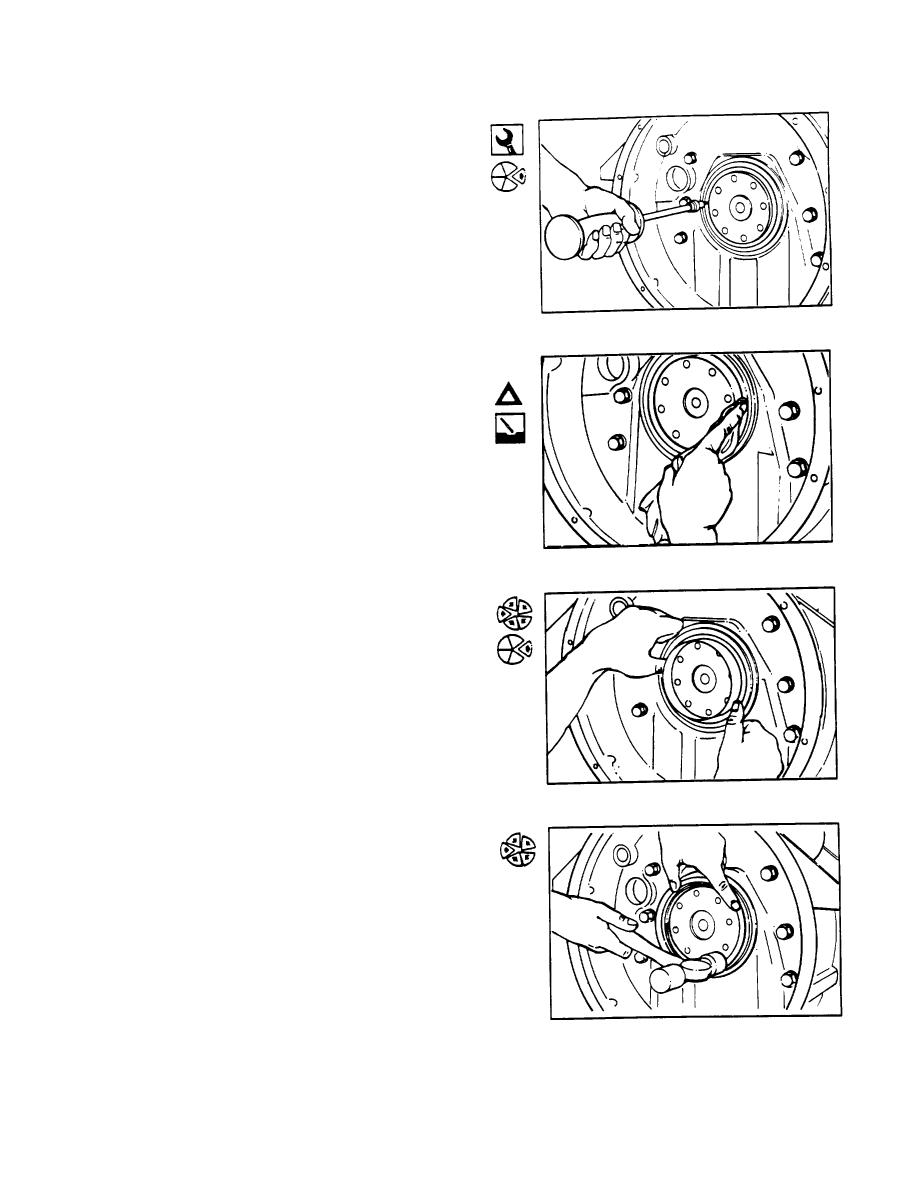

Remove the rear seal.
Rear Seal - Installation
Caution: The seal lip and the sealing surface on the
crankshaft must be free from all oil residue to
prevent seal leaks.
Clean and dry the rear crankshaft sealing surface.
Install the seal pilot, provided in the replacement kit,
onto the crankshaft. Push the seal onto the pilot and
crankshaft.
Remove the seal pilot.
Use the alignment tool to install the seal to the correct
depth in the housing. Use a hammer to drive the seal
into the housing until the alignment tool stops against
the housing.
Hit the tool at 12, 3, 6 and 9 o'clock positions to drive
the seal evenly and to prevent bending the seal carrier.
5-217
