TM 10-3950-672-24-2

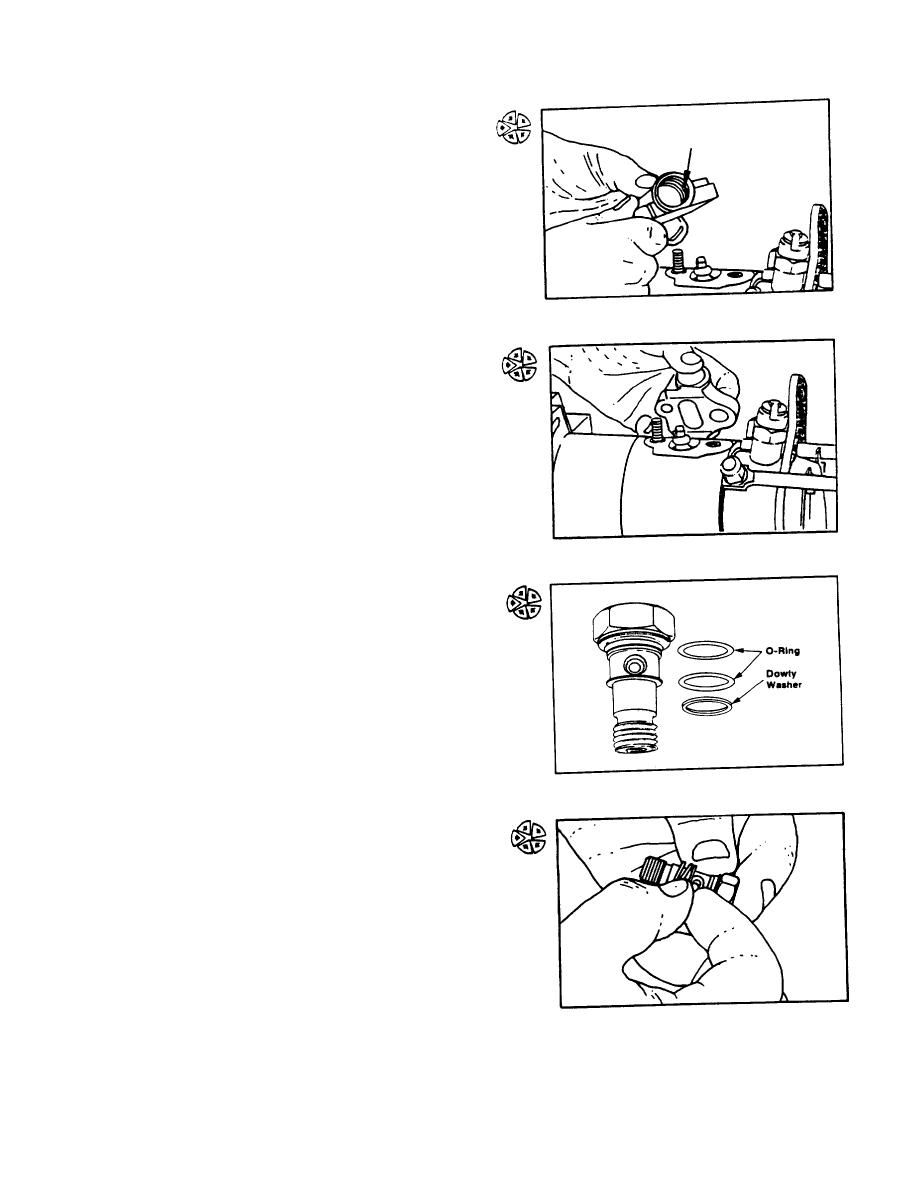

Insert the advance piston into the housing with the blank
end toward the oil feed hole in the bore.
Position the advance housing over the stud in the
injection pump with the cam advance screw positioned
into the center bore in the piston.
Install new o-rings on the head locating fitting.
Position the check ball in the head/locating fitting.
5-275
