TM 10-3950-672-24-2

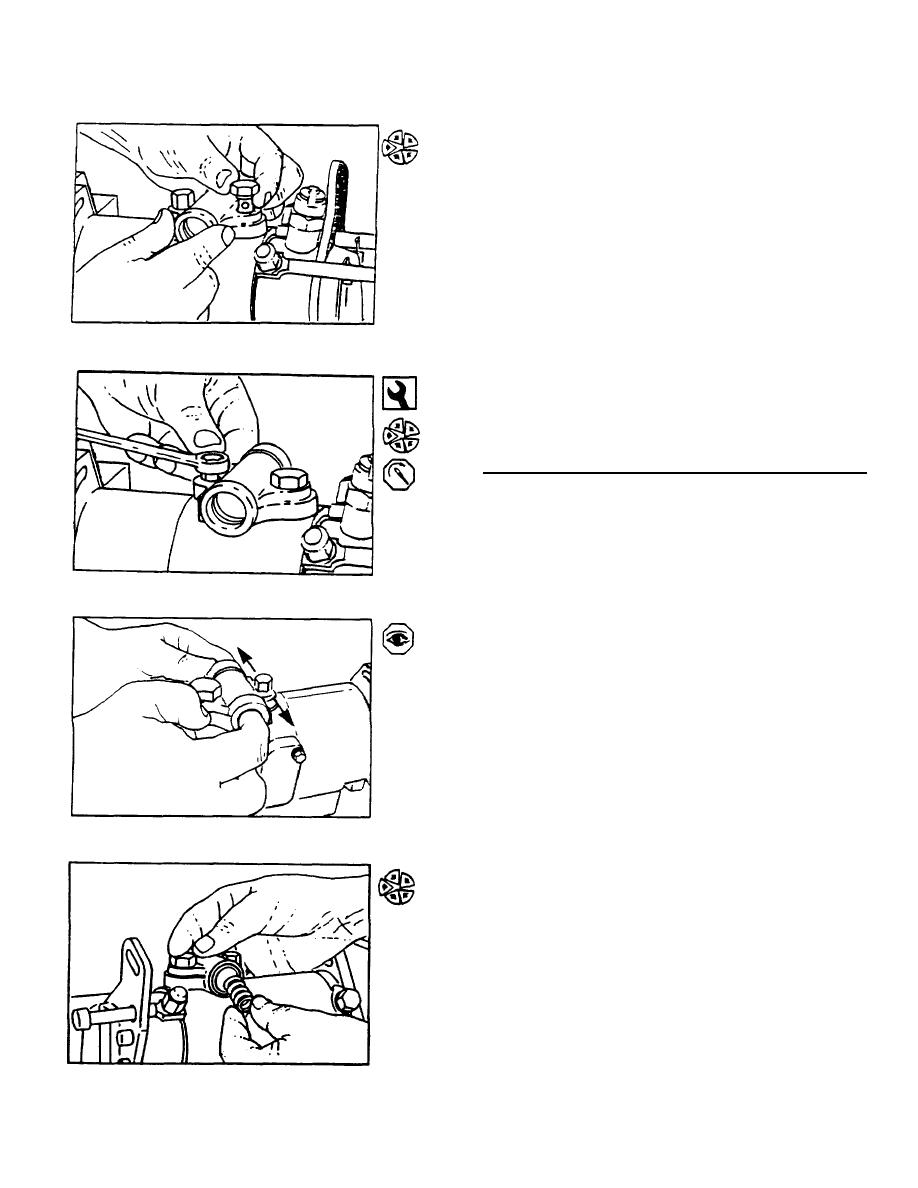

Position head/locating fitting through the advance hous-
ing and hand tighten.
13 mm, 19 mm
Install cap nut and a new washer. Tighten the cap nut
and head locating fitting progressively and evenly.
(Cap Nut)
30 N
m
[22 ft-lb]
(Locating Fitting)
40 N
m
[29 ft-lb]
Verify that the piston moves freely in the bore.
Install the springs and shims into the pocket end of the
advance piston.
5-276
