TM 10-3950-672-24-2
Engine Dynamometer Test -
Installation of the Engine (14-01)

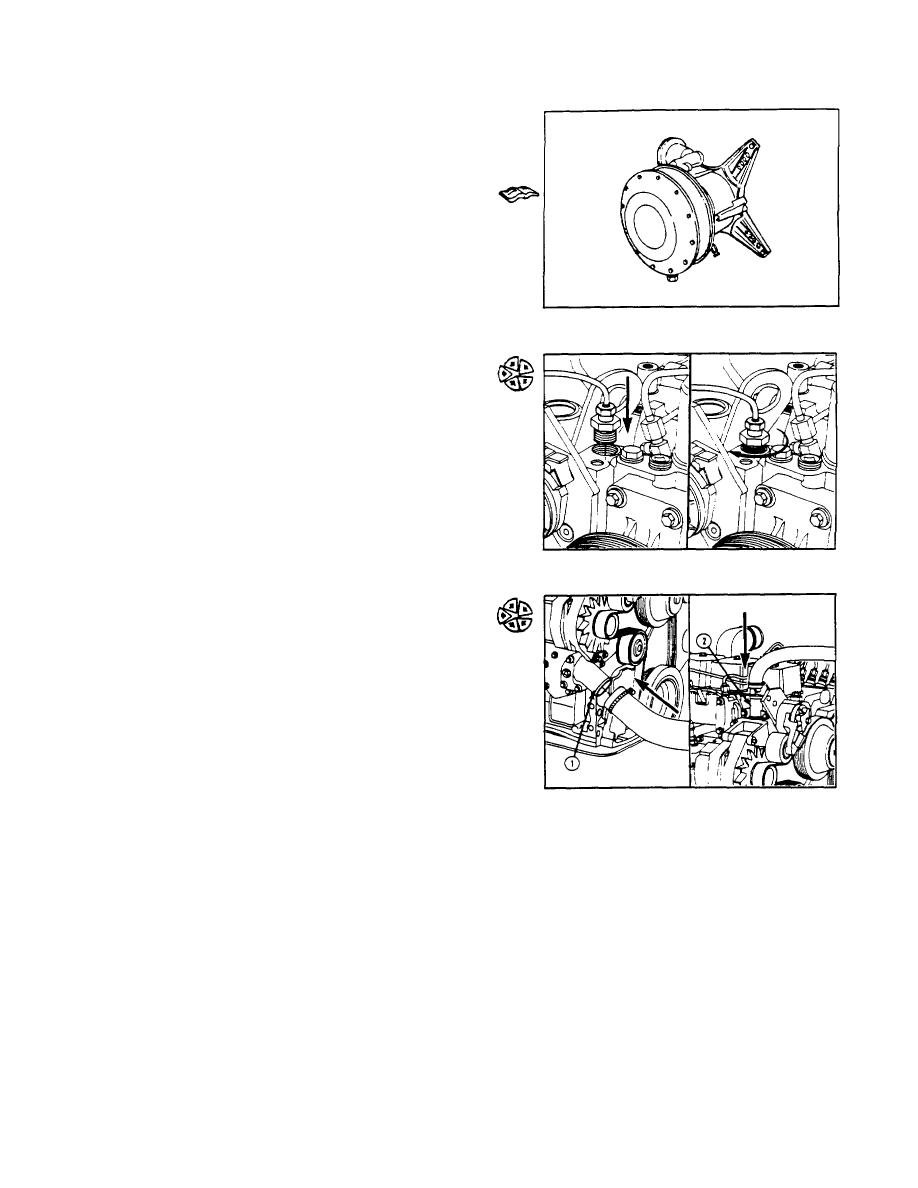

Use engine lifting fixture, Part No. ST-125, to install the
engine to the test stand.
Align and connect the
dynamometer. Refer to the manufacturer's instructions
for aligning and testing the engine.
NOTE: Make sure the dynamometer capacity is
sufficient to permit testing at 100 percent of the engine
rated horsepower. If the capacity is not enough, the
testing procedure must be modified to match the
restrictions of the dynamometer.
Install the coolant temperature sensor.
Minimum Gauge Capacity:
107 [225F]
C
Connect the coolant supply to the water inlet connection
(1).
Connect the coolant
return
to
the
water
outlet
connection (2).
Install the drain plugs, close all the water drain cocks,
and make sure all the clamps and fittings are tight.
Connect the vent tube to the vent connection on the
thermostat housing.
5-321
