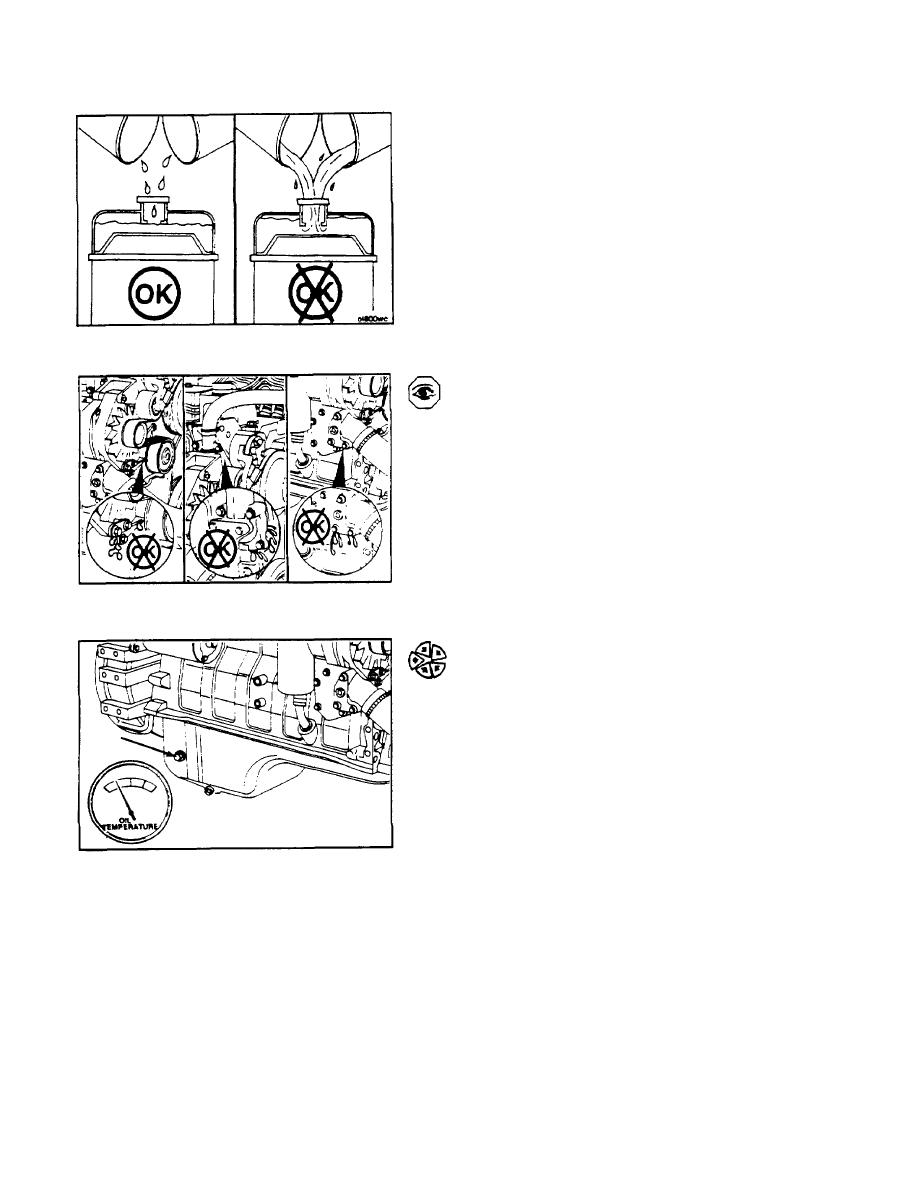

Fill the cooling system with coolant to the bottom of the
fill neck in the radiator fill (or expansion) tank.
Inspect the engine for coolant leaks at connections,
fittings, plates, and plugs. Repair as necessary.
Attach the lubricating oil temperature sensor in one of
the locations on the side of the engine as shown.
Minimum Gauge Capacity:
150C [300F]
