Install Mainshaft Assembly - Continued
Install Clutch Shaft.

Maintenance Manual For Crane, Truck Mounted Hydraulic 25 Ton (CCE) Page Navigation
  163    164    165    166    167  168  169    170    171    172    173
TM 5-3810-300-24&P2

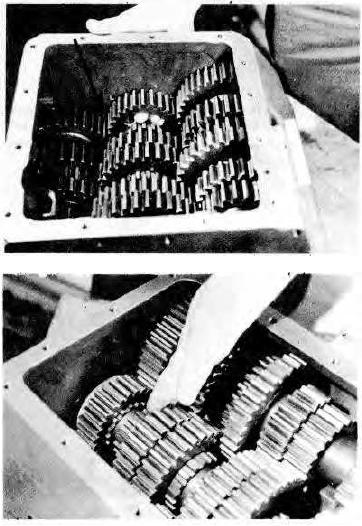

Slide the drive gear forward off the splines of the sliding
clutch and align the timing marks with the marked tooth
on the left countershaft.
Slide the 4th-Sth speed sliding clutch forward to engage
the splines of the drive gear.
4-184
