TM10-3950-672-24-2

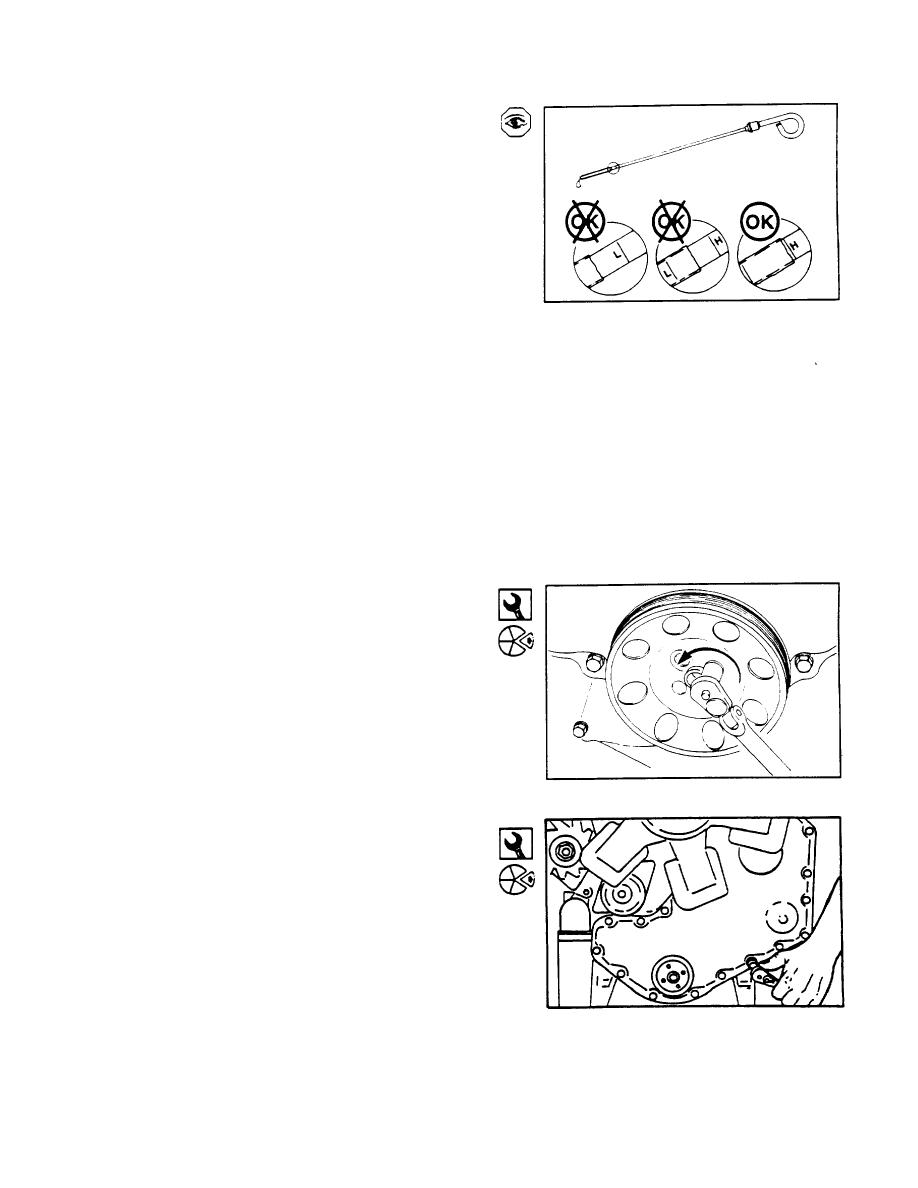

Fill the engine with oil. Run the engine and check for
leaks.
Stop the engine and check the oil level with the dipstick.
Oil Pump Replacement
Preparatory Step:
Remove the drive belt.
Note
Removal is easier if the crankshaft pulley is
loosened before removing the belt.
15mm
Remove the crankshaft pulley.
10mm
Remove the front cover.
5-133
