TM10-3950-672-24-2

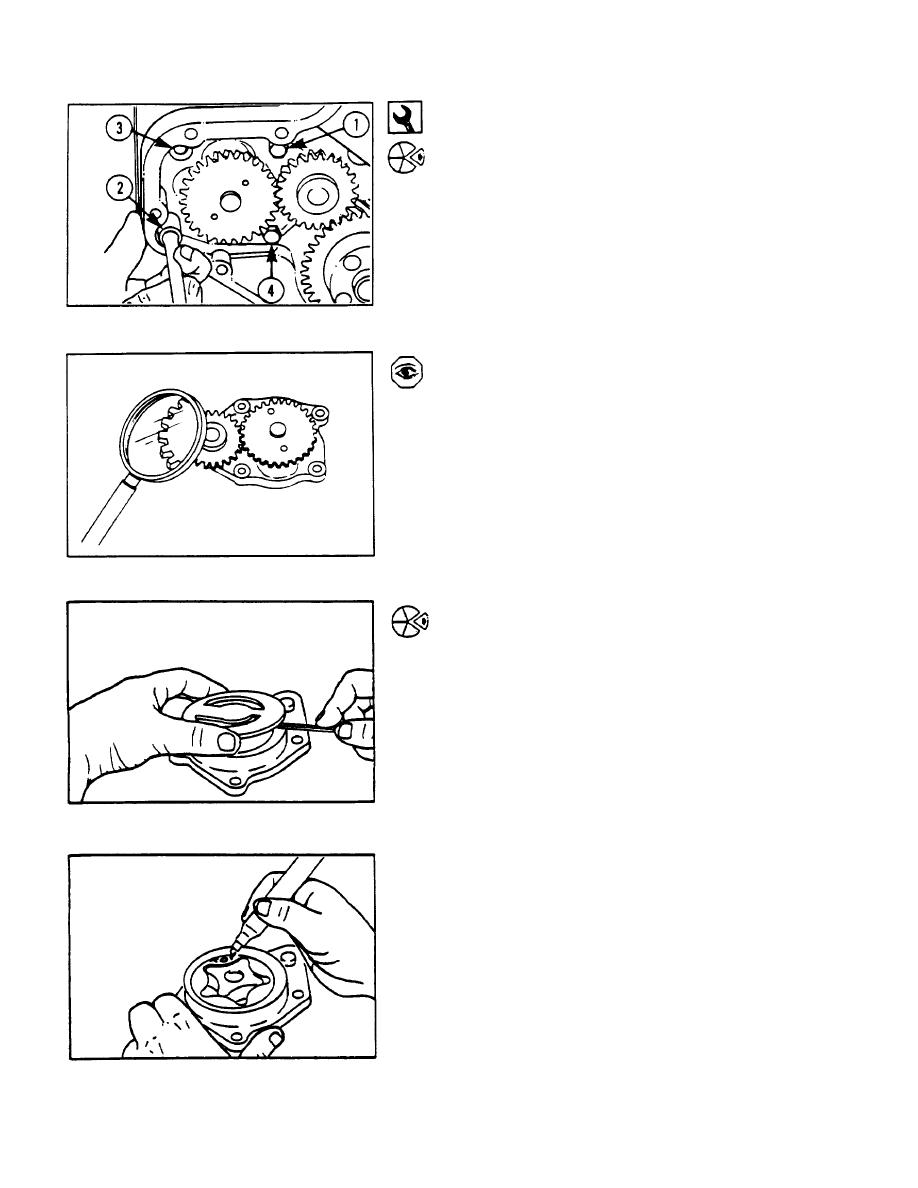

Remove the Lubricating Oil Pump
13mm
Remove the four mounting capscrews.
Remove the pump from the bore in the cylinder block.
Clean and Inspect
If the pump is to be inspected for reuse, follow these
steps.
Visually inspect the lube pump gears for chips, cracks,
or excessive wear.
Remove the back plate.
Mark "TOP" on the gerotor planetary.
5-134
