TM10-3950-672-24-2

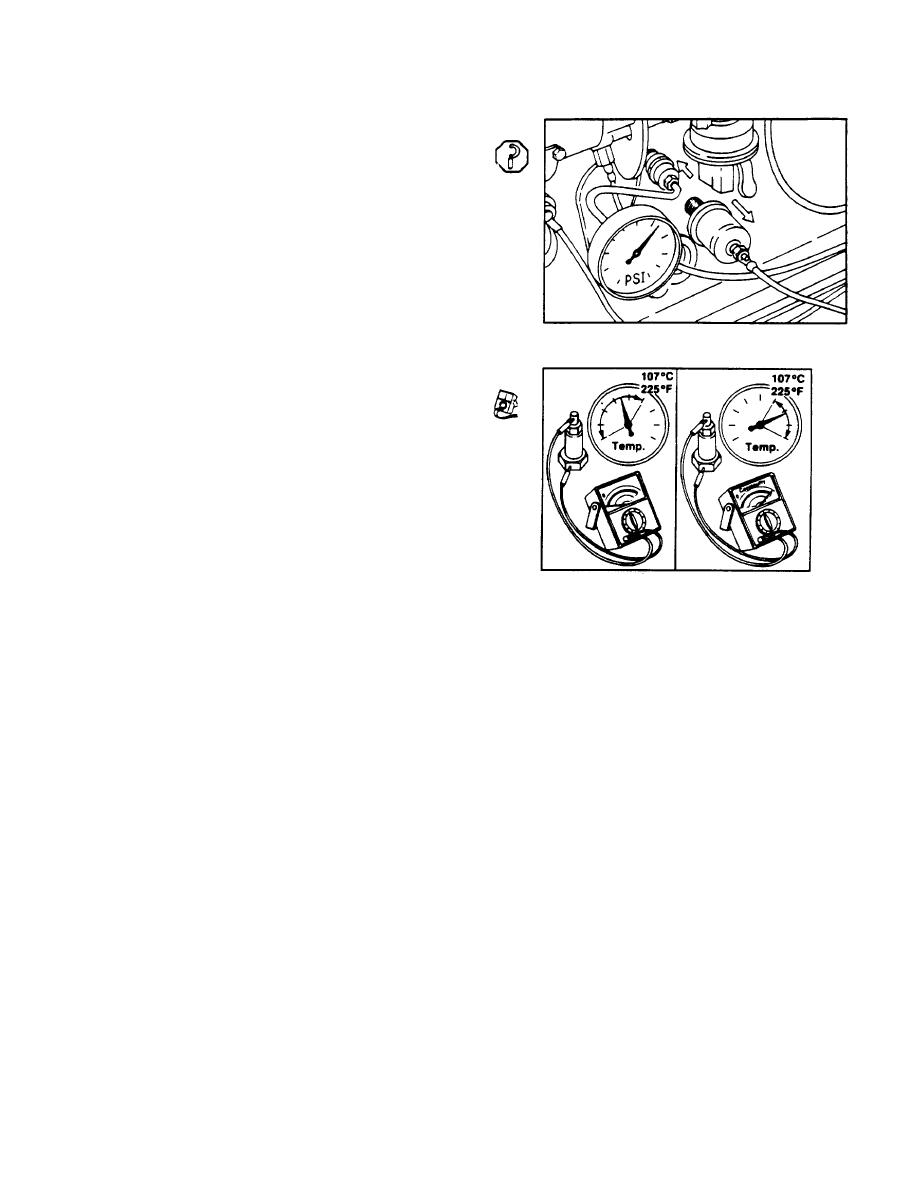

Oil Pressure Switch - Check
Remove the pressure switch, install a gage, start the
engine and measure oil pressure.
Minimum oil
pressure:
Idle (675 to 725 RPM) ......... 69 kPa [10 PSI]
Full Speed......................... 207 kPa [30 PSI]
Note
The Pressure switch is set to actuate when oil
pressure drops to 34 kPa [5 psi].
Temperature Sensor - Check
Check for continuity. The sensor will have continuity
only when coolant temperature is above 107C [225F]
5-154
