TM 10-3950-672-24-2
Engine Electrical System Replacement Procedures

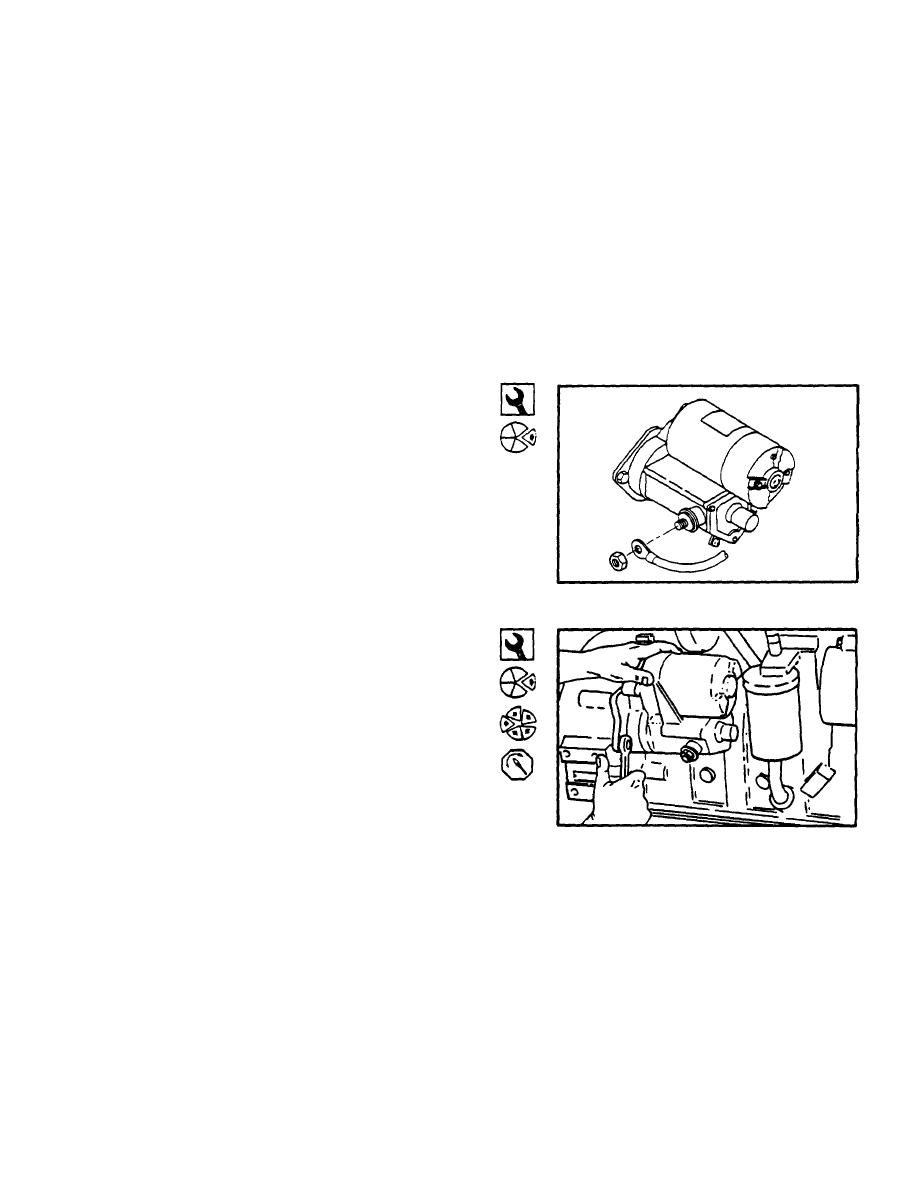

Starting Motor Replacement
Preparatory Steps:
Disconnect the ground cable from the battery
terminal.
Identify each electrical wire with a tag
indicating location.
17mm
Remove the battery cable from the solenoid.
10mm
Remove the starting motor.
Install the starting motor in the reverse order of removal.
m
[32 ft-lbs]
Preparatory Steps:
Disconnect the ground cable from the battery
terminal.
pulley.
5-155
