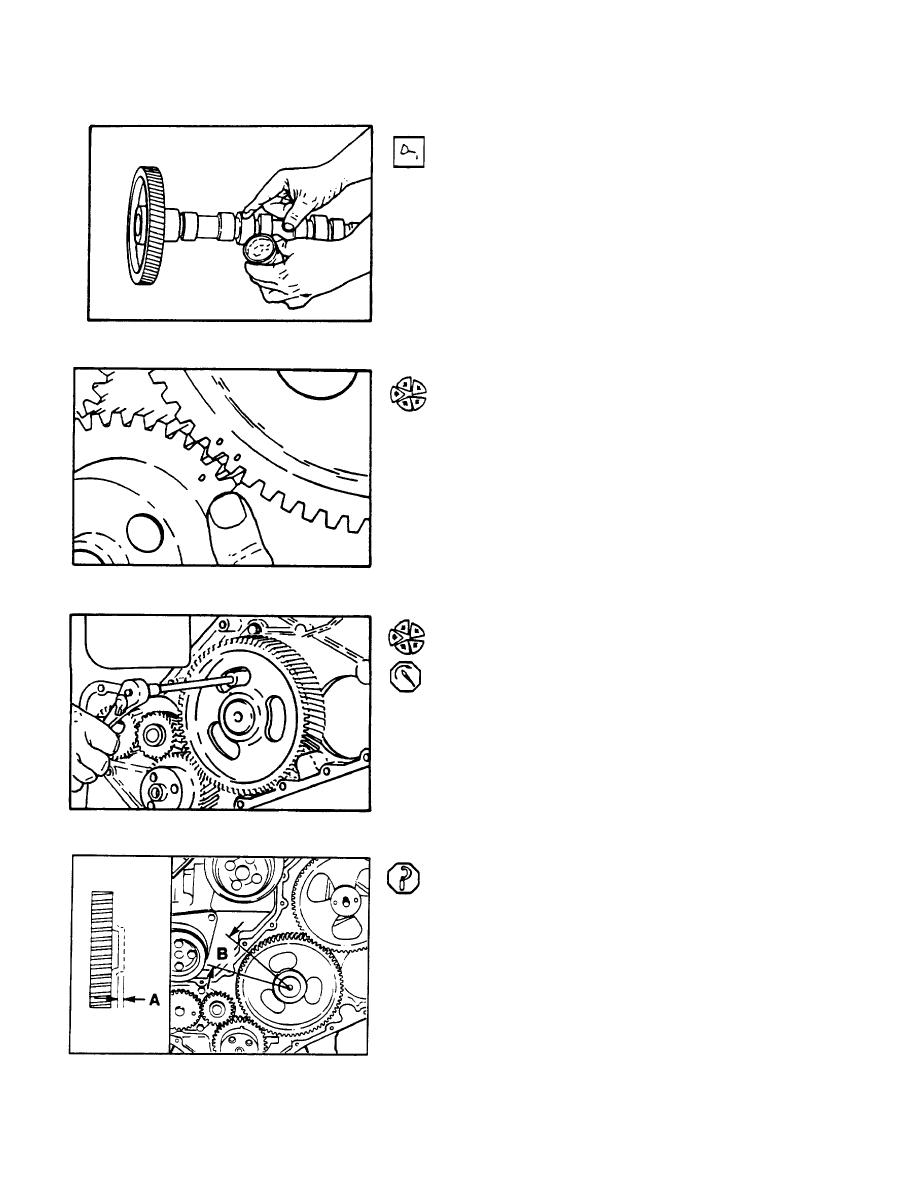

Lubricate the camshaft lobes, journals and thrust washer
with LubriplateTM 105.
Install the camshaft/thrust washer.
Align the timing
marks as illustrated.
Install the thrust washer capscrews and tighten to 24
N [18 ft lbs].
m
Verify the camshaft has proper back lash and end play.
A = 0.152 to 0.254mm [0.006 to 0.010 inch]
B = 0.12 to 0.33mm [0.005 to 0.013 inch]
