TM 10-3950-672-24-2

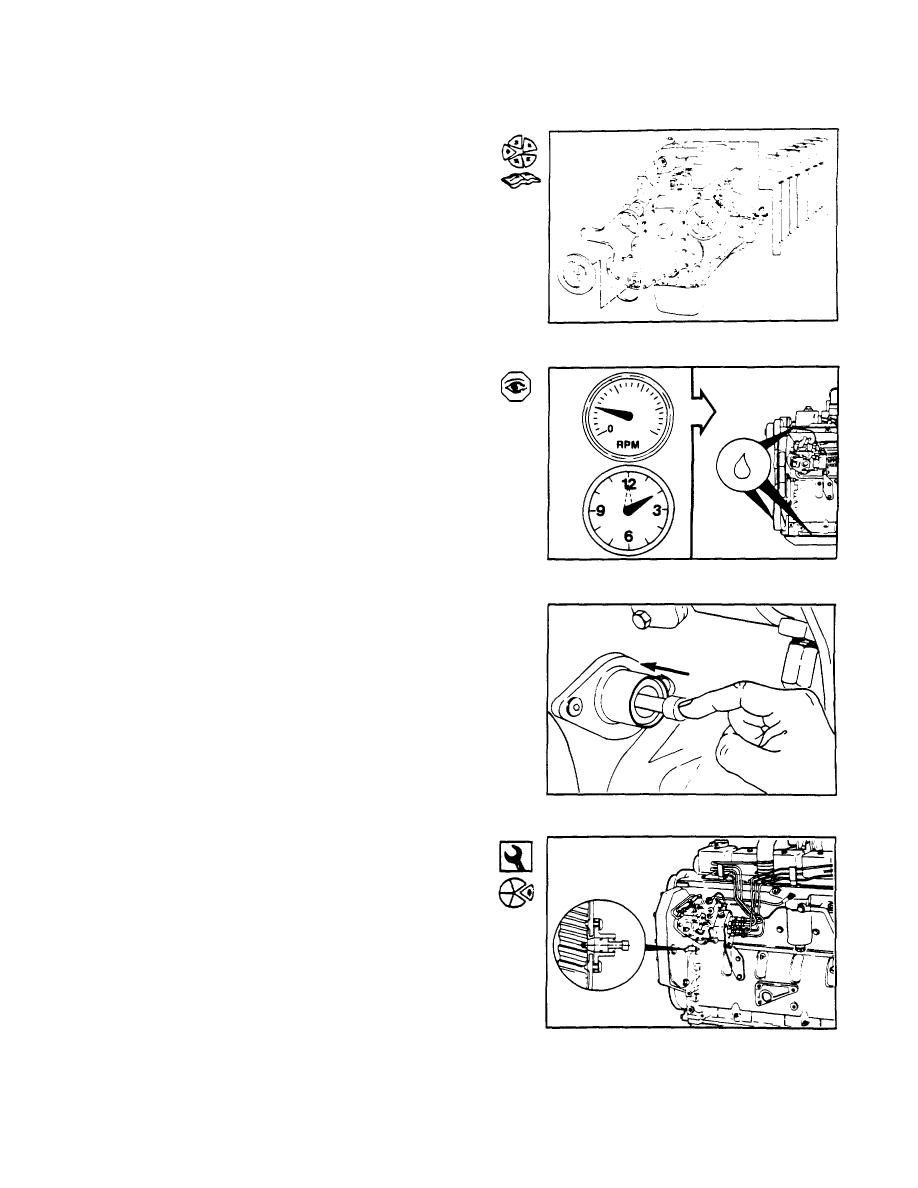

Complete the installation of the removed parts.
Gear cover
Vibration damper
Lift pump
Operate the engine at idle for 5 to 10 minutes and
check for leaks and loose parts.
Timing Pin Assembly or Gasket - Replacement
Locate TDC for Cylinder No. 1.
T-25 Torx
Remove the timing pin assembly and gasket.
5-209
