TM 10-3950-672-24-2
10mm
Caution: If a new housing or other than the original
housing is installed, the timing pin assembly must
be accurately located.

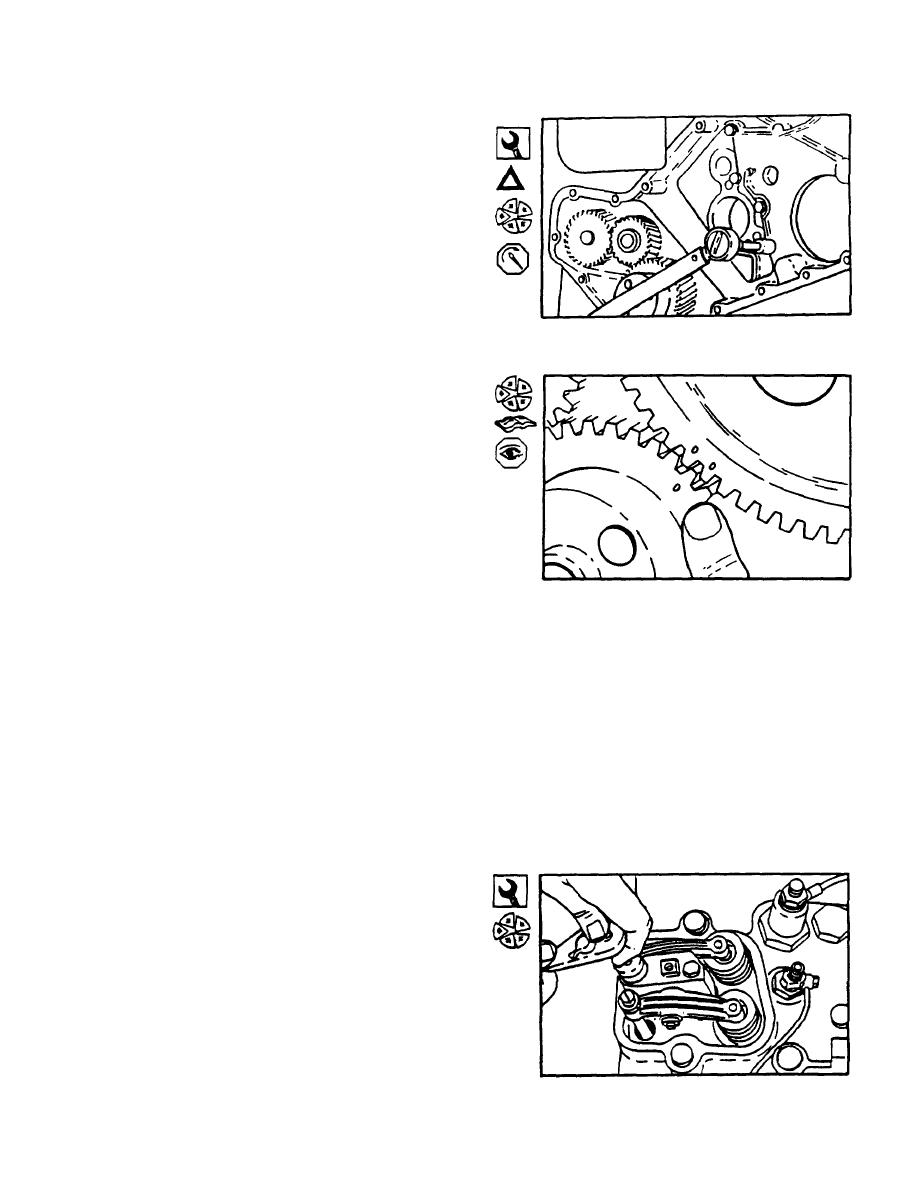

Install a new gasket and gear housing.
Torque Value: 24 N
[18 ft-lbs]
m
Install the camshaft.
Note: Make sure the alignment marks on the camshaft
and camshaft gears are aligned.
Timing Pin - Installation
The location of the timing pin assembly on the gear
housing is critical for correct engine adjustments.
Follow this procedure to install the assembly so that it
corresponds to Top Dead Center (TDC) for Cylinder
Number 1.
18mm, 13mm
Cylinder Number 1.
5-211
