TM 10-3950-672-24-2

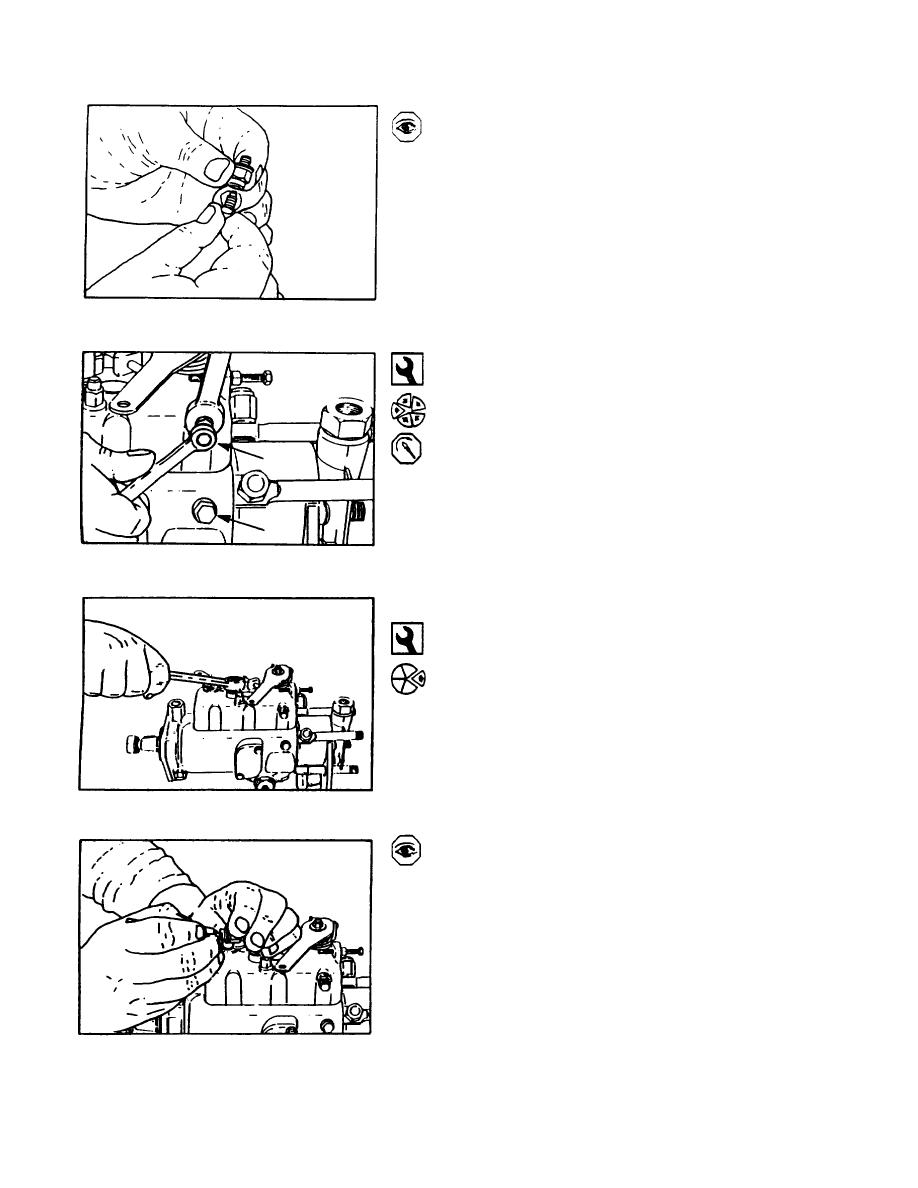

Inspect the threads and sealing surfaces.
If the fitting or bleed screw is damaged, replace the
damaged components.
8 mm, 11 mm
Install the bleed screw, fitting and new sealing washer.
Torque Value:
(Fitting) 7.3 Nom [65 in-lb]
Torque Value:
(Bleed Screw) 4.5 Nom [40 in-lb]
Vent
Fitting/Sealing
Washer
Inspection/
Replacement
16 mm
Remove the fitting and washer.
Inspect the sealing surfaces and verify that the orifice is
open.
5-268
