TM 10-3950-672-24-2

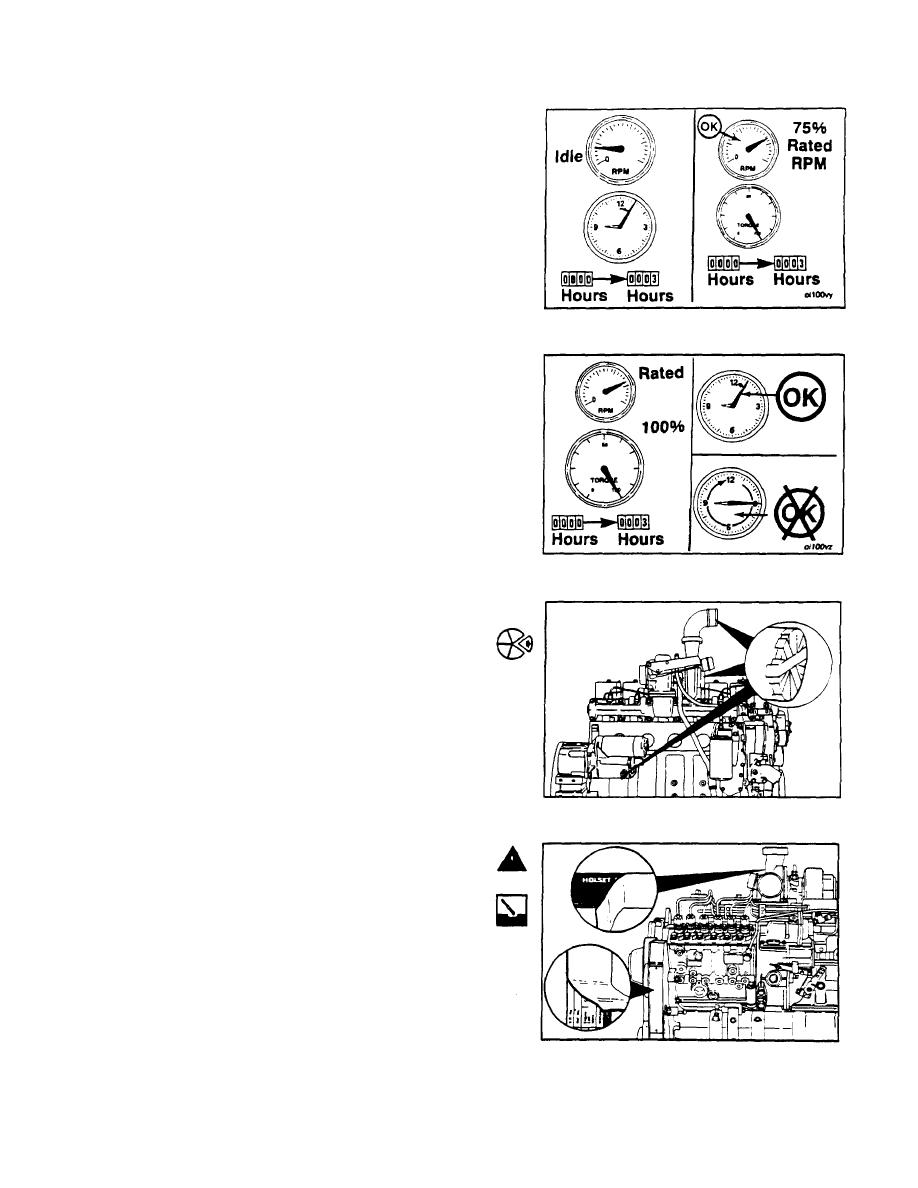

1. Do not idle the engine for more than 5 minutes at
any one time.
2. Operate the engine at 75 percent throttle while
loaded.
3. Do not operate the engine at rated speed (RPM) and
full load for more than 5 minutes at any one time.
Engine Painting (14-08)
Remove all belts from the engine.
Cover the following parts of the engine:
Electrical components
Fuel inlet and drain connections
Any exposed fittings, threads, and electrical wire
terminals
Warning: When using a steam cleaner, wear
protective clothing and safety glasses or a face
shield. Hot steam can cause serious personal
injury.
Use steam to clean the engine, and dry with
compressed air.
NOTE: Make sure all engine surfaces are dean and dry
before painting the engine.
5-337
