TM 10-3950-672-24-2

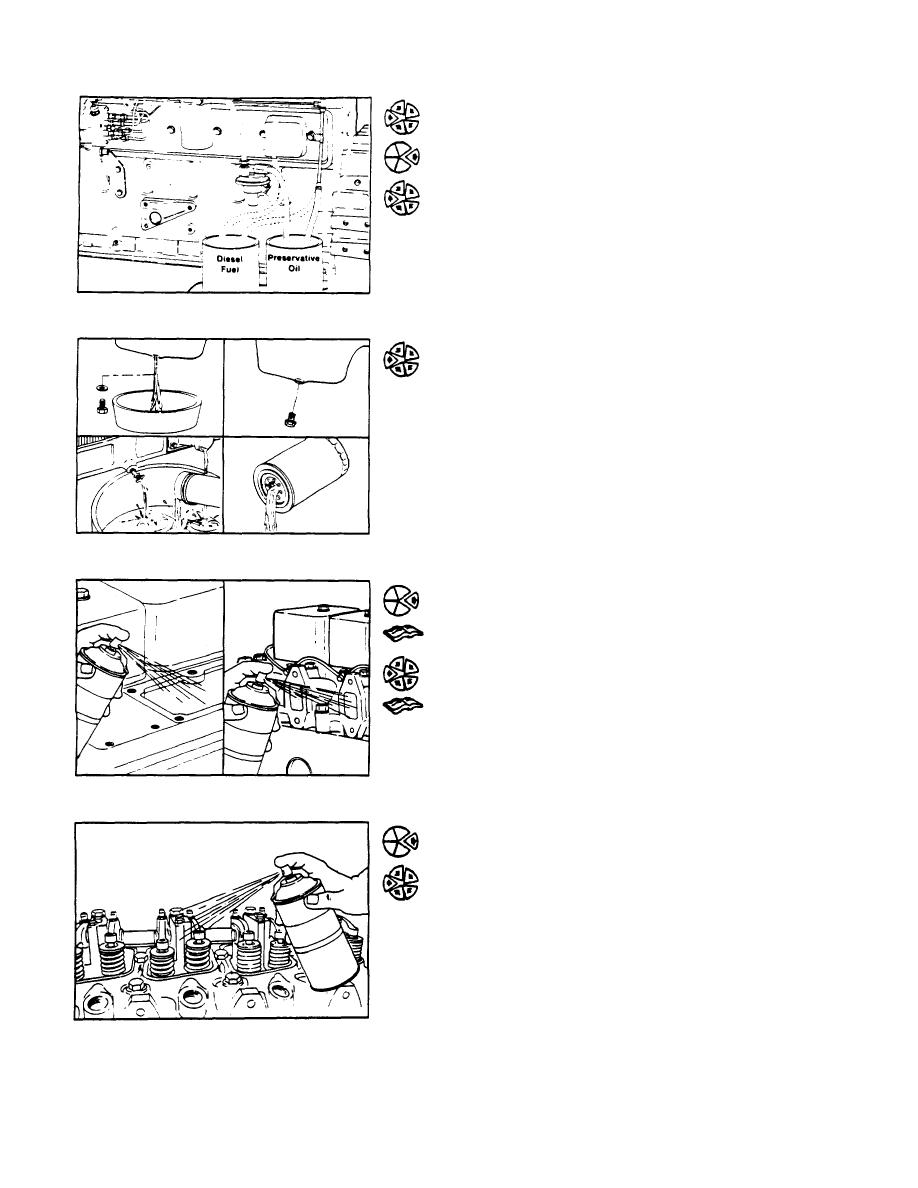

Start the engine and, when operating smoothly, put the
fuel supply tube into the container of preservative oil.
Remove the injector return tube from the diesel fuel
tube, shut off the engine.
Connect the fuel supply tube to the fuel filter, and put a
cap on the ends of all the other fuel tubes.
and the oil filters. Install the drain plug.
Drain and flush the cooling system, using a water-
soluble rust inhibitor.
Remove the exhaust manifold.
Refer to Engine Disassembly
ports of the cylinder head and into the aftercooler
housing and the exhaust manifold.
Install the aftercooler assembly and the exhaust
manifold. Refer to Engine Assembly.
Remove the rocker housing covers, and spray the
rocker levers, valve springs, valve stems, valve guides,
rocker housing cover.
compressor and on all exposed metal surfaces that are
not painted.
NOTE: Use a preservative compound that meets
Military Specification MIL-C-16137C Type P-2 Grade 1
or 2.
5-342
