Lube Pump - Installation (0-74)

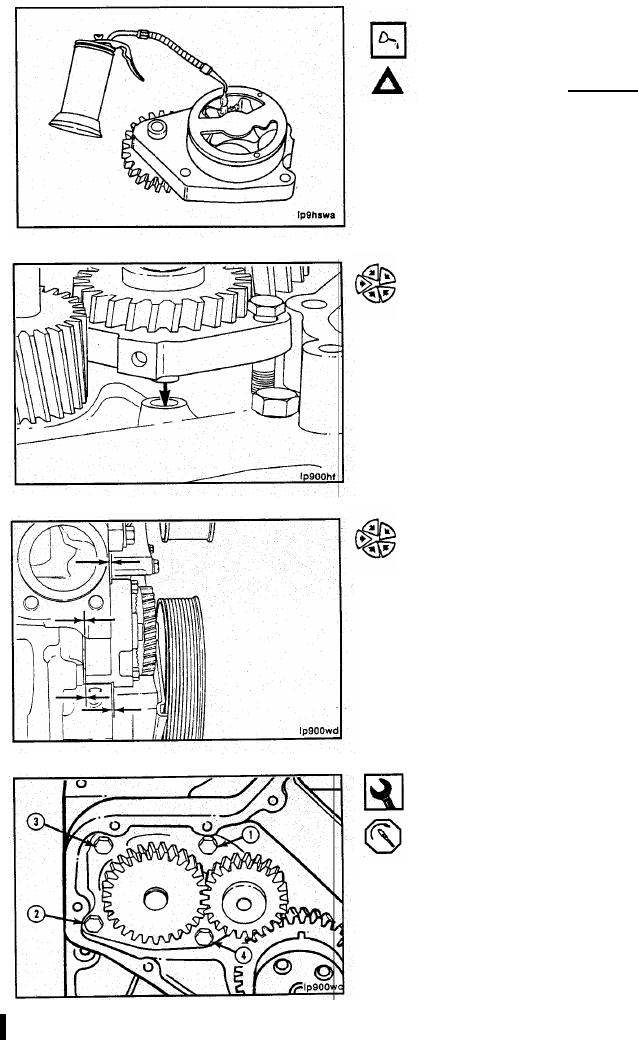

Lubricate the pump with clean engine oil.
CAUTION
Fill the lube pump before installation to aid
with priming during engine start up.
The idler gear pin fits into a locating bore in the
cylinder block.
Install the lube pump.
The sealing plate on the back of the pump will seat
on the cylinder block and the capscrews should not
draw the flange up to the block.
13 mm
Tighten the capscrews in the sequence shown.
Torque Value: 24 Nm [18 ft-lb]
